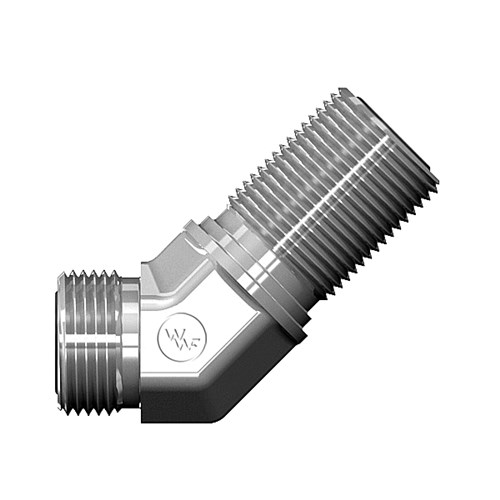

45° Bulkhead Elbow

Share Print Page

You have not viewed any products recently.

4375d

Enlarge

4375d

Attributes	Values
Product #	4375
Parker	WNLO
AirWay	FS2702
SAE	520801

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

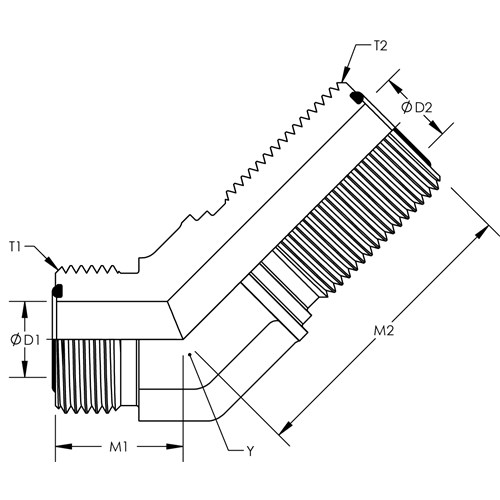

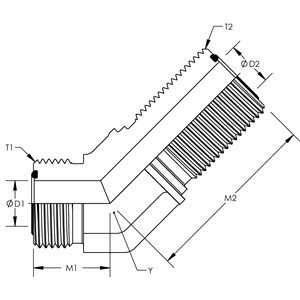

Part #	Y Hex	T1	M1	D1	T2	M2	D2
4375X04X04	0.563	9/16-18	0.630	0.177	9/16-18	1.732	0.177	Quote
4375X06X06	0.669	11/16-16	0.748	0.256	11/16-16	1.909	0.256	Quote
4375X08X08	0.750	13/16-16	0.807	0.374	13/16-16	2.008	0.374	Quote
4375X10X10	1.063	1-14	0.925	0.492	1-14	2.224	0.492	Quote
4375X12X12	1.188	1-3/16-12	1.024	0.610	1-3/16-12	2.382	0.610	Quote
4375X16X16	1.438	1-7/16-12	1.181	0.807	1-7/16-12	2.560	0.807	Quote
4375X20X20	1.625	1-11/16-12	1.260	1.024	1-11/16-12	2.638	1.024	Quote
