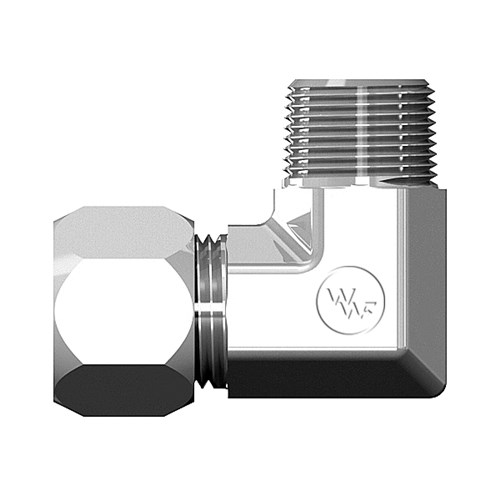

90° Male Elbow

Share Print Page

You have not viewed any products recently.

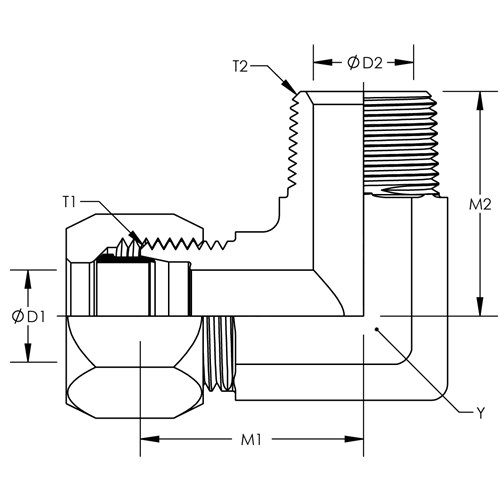

7405d

Enlarge

7405d

Attributes	Values
Product #	7405
Parker	CBU
AirWay	C2501
SAE	080202
Stainless Part No	C2501-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
7405X02X02	0.438	5/16-24	0.770	0.094	1/8-27	0.720	0.188	Quote
7405X03X02	0.438	3/8-24	0.830	0.125	1/8-27	0.720	0.188	Quote
7405X04X02	0.438	7/16-20	0.890	0.203	1/8-27	0.780	0.188	Quote
7405X04X04	0.563	7/16-20	1.030	0.203	1/4-18	1.090	0.281	Quote
7405X05X02	0.563	1/2-20	0.950	0.234	1/8-27	0.810	0.188	Quote
7405X05X04	0.563	1/2-20	1.030	0.234	1/4-18	1.090	0.281	Quote
7405X06X02	0.563	9/16-18	1.050	0.281	1/8-27	0.900	0.188	Quote
7405X06X04	0.563	9/16-18	1.050	0.281	1/4-18	1.090	0.281	Quote
7405X06X06	0.750	9/16-18	1.140	0.281	3/8-18	1.220	0.406	Quote
7405X06X08	0.875	9/16-18	1.240	0.281	1/2-14	1.470	0.531	Quote
7405X08X04	0.750	3/4-16	1.250	0.422	1/4-18	1.220	0.281	Quote
7405X08X06	0.750	3/4-16	1.250	0.422	3/8-18	1.220	0.406	Quote
7405X08X08	0.875	3/4-16	1.350	0.422	1/2-14	1.470	0.531	Quote
7405X08X12	1.063	3/4-16	1.430	0.422	3/4-14	1.590	0.719	Quote
7405X10X06	0.875	7/8-14	1.420	0.500	3/8-18	1.280	0.406	Quote
7405X10X08	0.875	7/8-14	1.420	0.500	1/2-14	1.470	0.531	Quote
7405X12X08	1.063	1-1/16-12	1.580	0.656	1/2-14	1.590	0.531	Quote
7405X12X12	1.063	1-1/16-12	1.580	0.656	3/4-14	1.590	0.719	Quote
7405X14X12	1.313	1-3/16-12	1.660	0.719	3/4-14	1.690	0.719	Quote
7405X16X12	1.313	1-5/16-12	1.730	0.875	3/4-14	1.780	0.719	Quote
7405X16X16	1.313	1-5/16-12	1.730	0.875	1-11-1/2	1.970	0.938	Quote
7405X20X20	1.625	1-5/8-12	1.890	1.094	1-1/4-11-1/2	2.380	1.250	Quote
7405X24X24	1.875	1-7/8-12	2.020	1.344	1-1/2-11-1/2	2.640	1.500	Quote
7405X32X32	2.500	2-1/2-12	2.450	1.813	2-11-1/2	3.000	1.938	Quote
