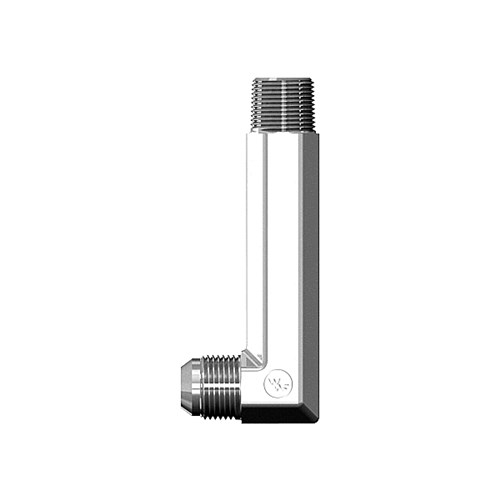

90° Male Extra Extra Long Elbow

Share Print Page

You have not viewed any products recently.

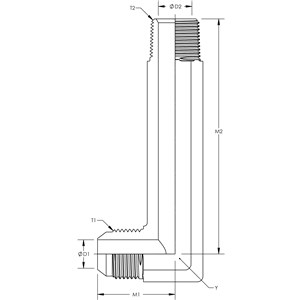

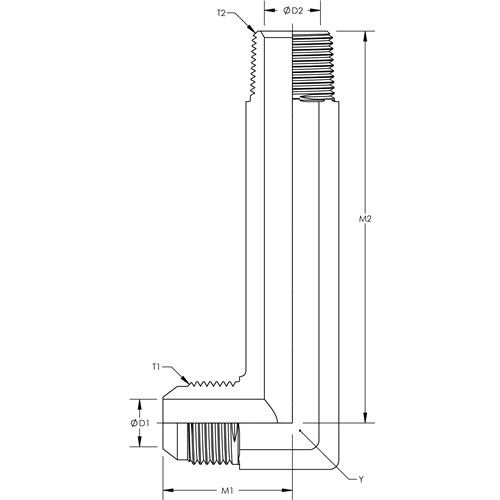

F5445d

Enlarge

F5445d

Attributes	Values
Product #	F5445
Aeroquip	202414-[R]
AirWay	2501-LLL
Stainless Part No	2501-LLL-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5445X04X02	0.438	7/16-20	0.890	0.172	1/8-27	2.310	0.188	Quote
F5445X04X04	0.563	7/16-20	1.050	0.172	1/4-18	3.060	0.281	Quote
F5445X06X06	0.750	9/16-18	1.140	0.297	3/8-18	3.750	0.406	Quote
F5445X08X06	0.750	3/4-16	1.250	0.391	3/8-18	3.750	0.406	Quote
F5445X10X08	0.875	7/8-14	1.450	0.484	1/2-14	4.500	0.531	Quote
F5445X12X12	1.063	1-1/16-12	1.660	0.609	3/4-14	5.030	0.719	Quote
F5445X16X16	1.313	1-5/16-12	1.810	0.844	1-11-1/2	6.340	0.938	Quote
