Home>Products>Steel 37 Flare (JIC) Fittings>90° Male Pipe to Female 37° JIC Swivel

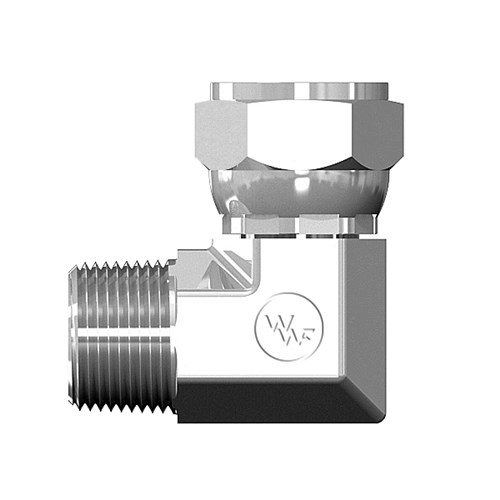

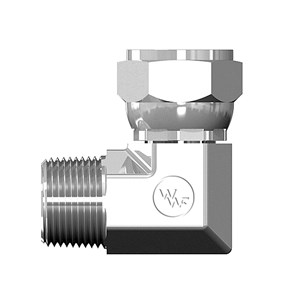

90° Male Pipe to Female 37° JIC Swivel

Share Print Page

You have not viewed any products recently.

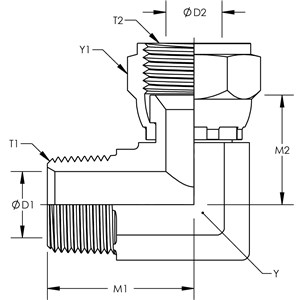

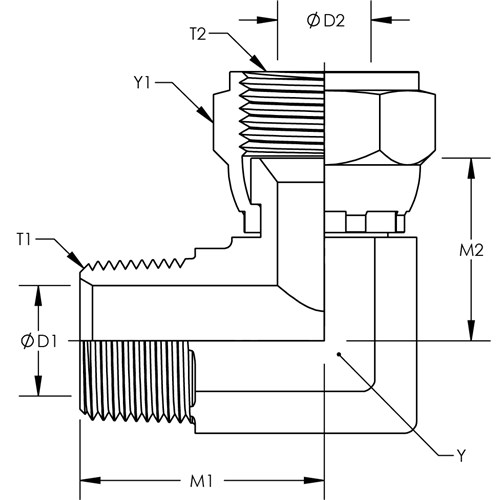

9406d

Enlarge

9406d

Attributes	Values
Product #	9406
Aeroquip	2250
Parker	X6EF
AirWay	6501

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	Y1 Hex	T1	M1	D1	T2	M2	D2
9406X08X12	1.063	1.250	1/2-14	1.590	0.531	1-1/16-12	1.180	0.609	Quote
9406X02X04	0.438	0.563	1/8-27	0.780	0.188	7/16-20	0.660	0.172	Quote
9406X04X04	0.563	0.563	1/4-18	1.090	0.281	7/16-20	0.800	0.172	Quote
9406X04X06	0.563	0.688	1/4-18	1.090	0.281	9/16-18	0.875	0.297	Quote
9406X06X04	0.750	0.563	3/8-18	1.220	0.406	7/16-20	0.830	0.172	Quote
9406X06X06	0.750	0.688	3/8-18	1.220	0.406	9/16-18	0.900	0.297	Quote
9406X06X08	0.750	0.875	3/8-18	1.220	0.406	3/4-16	0.958	0.391	Quote
9406X08X06	0.875	0.688	1/2-14	1.470	0.531	9/16-18	1.045	0.297	Quote
9406X08X08	0.875	0.875	1/2-14	1.470	0.531	3/4-16	1.090	0.391	Quote
9406X08X10	0.875	1.000	1/2-14	1.470	0.531	7/8-14	1.120	0.484	Quote
9406X12X12	1.063	1.250	3/4-14	1.590	0.719	1-1/16-12	1.180	0.609	Quote
9406X16X16	1.313	1.500	1-11-1/2	1.970	0.938	1-5/16-12	1.410	0.844	Quote
9406X20X20	1.625	2.000	1-1/4-11-1/2	2.380	1.250	1-5/8-12	1.670	1.078	Quote
9406X24X24	1.875	2.250	1-1/2-11-1/2	2.640	1.500	1-7/8-12	1.856	1.313	Quote
