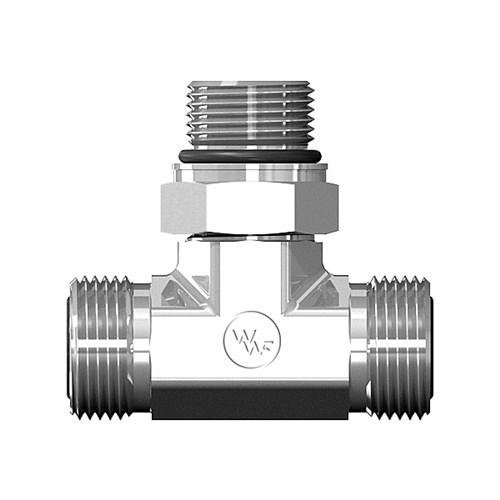

Adjustable Stud Branch Tee - Metric

Share Print Page

You have not viewed any products recently.

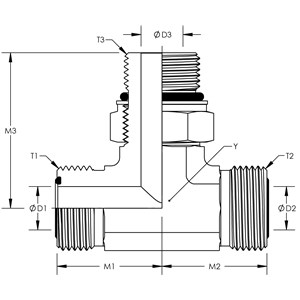

4715Md

Enlarge

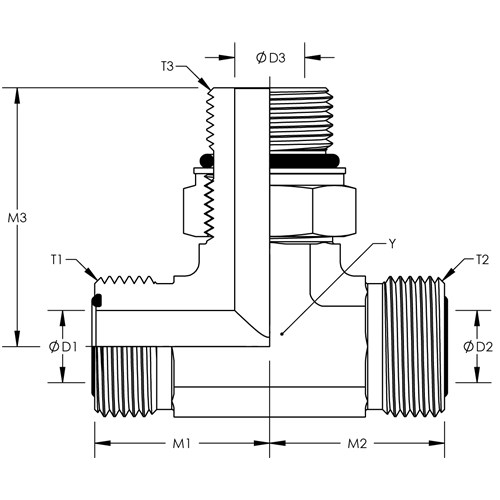

4715Md

Attributes	Values
Product #	4715M
Parker	S87OMLO
AirWay	FS7210

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4715X04X04XM12	0.551	9/16-18	0.846	0.177	9/16-18	0.846	0.177	M12X1.5	1.299	0.157	Quote
4715X08X08XM22	0.945	13/16-16	1.240	0.374	13/16-16	1.240	0.374	M22X1.5	1.929	0.472	Quote
4715X10X10XM22	0.945	1-14	1.319	0.492	1-14	1.319	0.492	M22X1.5	1.929	0.472	Quote
4715X12X12XM27	1.063	1-3/16-12	1.476	0.610	1-3/16-12	1.476	0.610	M27X2.0	2.185	0.590	Quote
