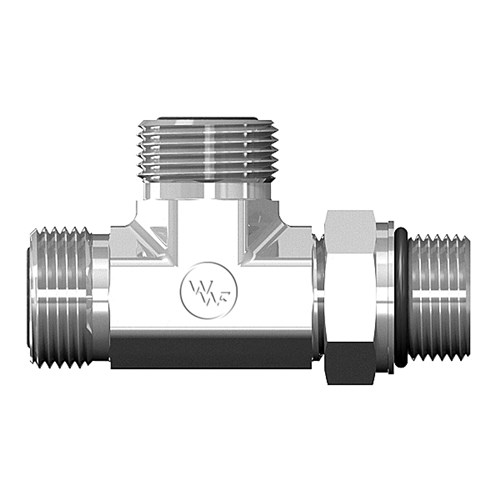

Adjustable Stud Run Tee - Metric

Share Print Page

You have not viewed any products recently.

4716Md

Enlarge

4716Md

Attributes	Values
Product #	4716M
Parker	R87OMLO
AirWay	FS7215

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

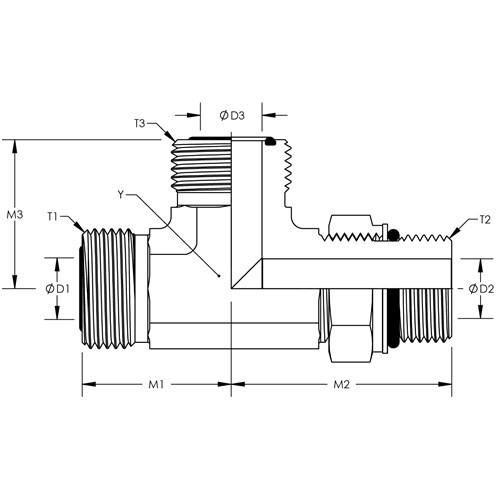

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4716X04XM12X04	0.551	9/16-18	0.846	0.177	M12X1.5	1.299	0.157	9/16-18	0.846	0.177	Quote
4716X04XM14X04	0.669	9/16-18	0.945	0.177	M14X1.5	1.398	0.236	9/16-18	0.945	0.177	Quote
4716X06XM14X06	0.669	11/16-16	0.984	0.256	M14X1.5	1.398	0.236	11/16-16	0.984	0.256	Quote
4716X06XM16X06	0.669	11/16-16	0.984	0.256	M16X1.5	1.476	0.275	11/16-16	0.984	0.256	Quote
4716X08XM14X08	0.748	13/16-16	1.102	0.374	M14X1.5	1.417	0.236	13/16-16	1.102	0.374	Quote
4716X08XM18X08	0.748	13/16-16	1.102	0.374	M18X1.5	1.614	0.354	13/16-16	1.102	0.374	Quote
4716X10XM22X10	0.945	1-14	1.319	0.492	M22X1.5	1.929	0.472	1-14	1.319	0.492	Quote
4716X12XM27X12	1.063	1-3/16-12	1.476	0.610	M27X2.0	2.185	0.590	1-3/16-12	1.476	0.610	Quote
4716X16XM33X16	1.417	1-7/16-12	1.634	0.807	M33X2.0	2.342	0.787	1-7/16-12	1.634	0.807	Quote
