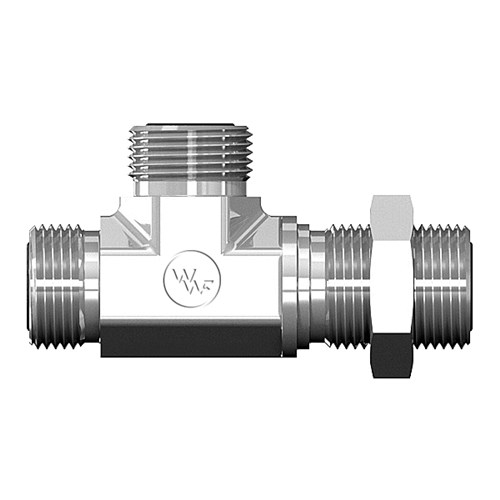

Bulkhead Run Tee With Locknut

Share Print Page

You have not viewed any products recently.

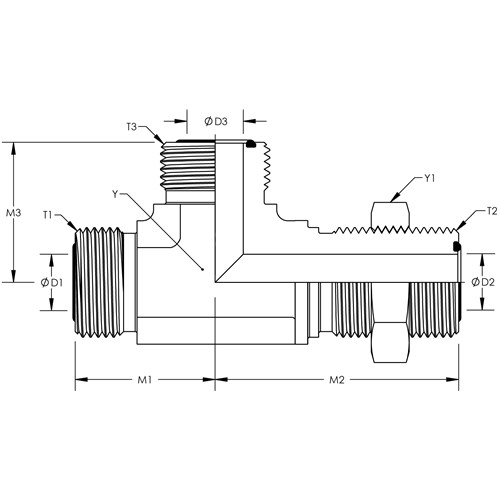

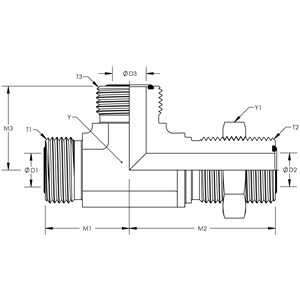

4726LNd

Enlarge

4726LNd

Attributes	Values
Product #	4726LN
Aeroquip	FF2174T
Parker	WJJLO-WLN
AirWay	FS2704-LN
SAE	520958

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	Y1 Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4726X04X04X04LN	0.563	0.813	9/16-18	0.886	0.177	9/16-18	1.850	0.177	9/16-18	0.886	0.177	Quote
4726X06X06X06LN	0.669	1.000	11/16-16	1.024	0.256	11/16-16	2.047	0.256	11/16-16	1.024	0.256	Quote
4726X08X08X08LN	0.750	1.125	13/16-16	1.142	0.374	13/16-16	2.185	0.374	13/16-16	1.142	0.374	Quote
4726X10X10X10LN	1.063	1.313	1-14	1.358	0.492	1-14	2.480	0.492	1-14	1.358	0.492	Quote
4726X12X12X12LN	1.188	1.500	1-3/16-12	1.516	0.610	1-3/16-12	2.637	0.610	1-3/16-12	1.516	0.610	Quote
4726X16X16X16LN	1.438	1.750	1-7/16-12	1.673	0.807	1-7/16-12	2.795	0.807	1-7/16-12	1.673	0.807	Quote
4726X20X20X20LN	1.625	2.000	1-11/16-12	1.791	1.024	1-11/16-12	2.972	1.024	1-11/16-12	1.791	1.024	Quote
4726X24X24X24LN	1.875	2.375	2-12	1.949	1.260	2-12	3.130	1.260	2-12	1.949	1.260	Quote
