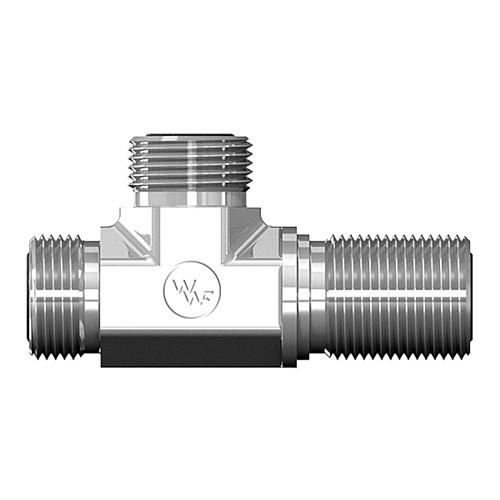

Bulkhead Run Tee

Share Print Page

You have not viewed any products recently.

4726d

Enlarge

4726d

Attributes	Values
Product #	4726
Parker	WJJLO
AirWay	FS2704
SAE	520958

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

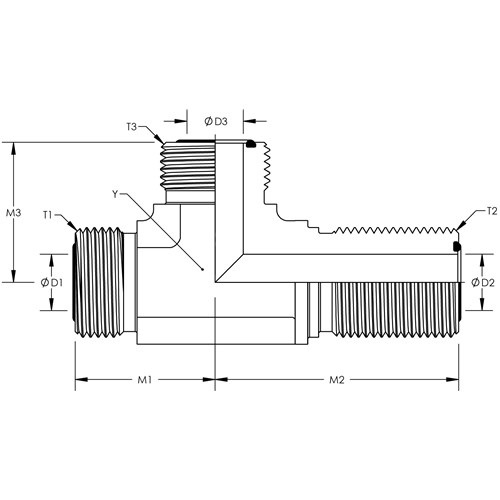

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4726X04X04X04	0.563	9/16-18	0.886	0.177	9/16/2018	1.850	0.177	9/16/2018	0.886	0.177	Quote
4726X06X06X06	0.669	11/16-16	1.024	0.256	11/16/2016	2.047	0.256	11/16/2016	1.024	0.256	Quote
4726X08X08X08	0.750	13/16-16	1.142	0.374	13/16-16	2.185	0.374	13/16-16	1.142	0.374	Quote
4726X10X10X10	1.063	1-14	1.358	0.492	1-14	2.480	0.492	1-14	1.358	0.492	Quote
4726X12X12X12	1.188	1-3/16-12	1.516	0.610	1-3/16-12	2.637	0.610	1-3/16-12	1.516	0.610	Quote
4726X16X16X16	1.438	1-7/16-12	1.673	0.807	1-7/16-12	2.795	0.807	1-7/16-12	1.673	0.807	Quote
4726X20X20X20	1.625	1-11/16-12	1.791	1.024	1-11/16-12	2.972	1.024	1-11/16-12	1.791	1.024	Quote
4726X24X24X24	1.875	2-12	1.949	1.260	12-Feb	3.130	1.260	12-Feb	1.949	1.260	Quote
