Home>Products>Steel O Ring Face Seal Fittings>Bulkhead Straight

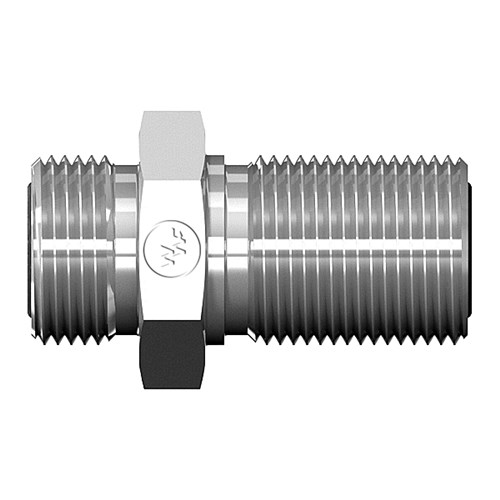

Bulkhead Straight

Share Print Page

You have not viewed any products recently.

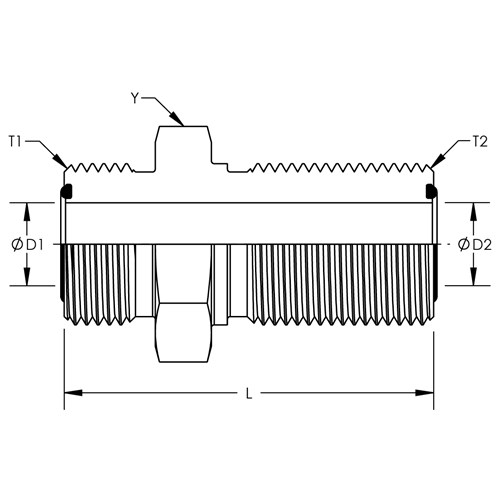

4325d

Enlarge

4325d

Attributes	Values
Product #	4325
Parker	WLO
AirWay	FS2700
SAE	520601

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	D1	T2	D2	L
4325X04X04	0.813	9/16-18	0.177	9/16-18	0.177	1.890	Quote
4325X06X06	1.000	11/16-16	0.256	11/16-16	0.256	2.087	Quote
4325X06X08	1.125	11/16-16	0.256	13/16-16	0.374	2.224	Quote
4325X08X08	1.125	13/16-16	0.374	13/16-16	0.374	2.303	Quote
4325X08X10	1.313	13/16-16	0.374	1-14	0.492	2.520	Quote
4325X10X10	1.313	1-14	0.492	1-14	0.492	2.618	Quote
4325X12X12	1.500	1-3/16-12	0.610	1-3/16-12	0.610	2.716	Quote
4325X16X12	1.750	1-7/16-12	0.807	1-3/16-12	0.610	2.736	Quote
4325X16X16	1.750	1-7/16-12	0.807	1-7/16-12	0.807	2.756	Quote
4325X20X20	2.000	1-11/16-12	1.024	1-11/16-12	1.024	2.756	Quote
