Home>Products>Steel O Ring Face Seal Fittings>Bulkhead to ORB Straight

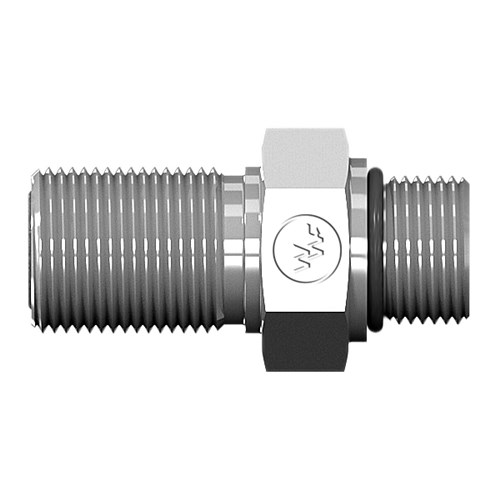

Bulkhead to ORB Straight

Share Print Page

You have not viewed any products recently.

FS2764d

Enlarge

FS2764d

Attributes	Values
Product #	FS2764
Parker	WF5OLO
AirWay	FS2764
L	2.140

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

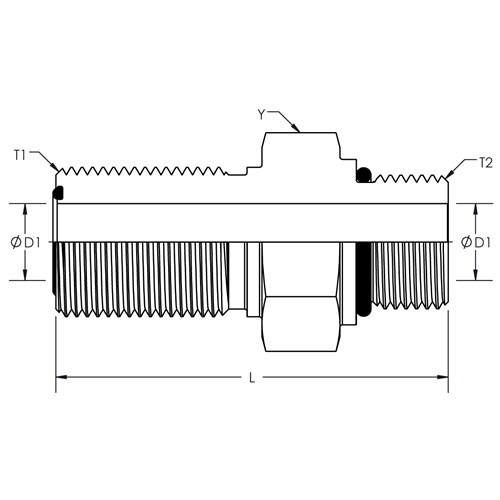

Part #	Y Hex	T1	D1	T2	D2	L
FS2764X04X04	0.813	9/16-18	0.177	7/16-20	0.177	2.311	Quote
FS2764X06X06	1.000	11/16-16	0.256	9/16-16	0.256	2.570	Quote
FS2764X08X08	1.125	13/16-16	0.374	3/4-16	0.374	2.910	Quote
FS2764X10X10	1.312	1-14	0.492	7/8-14	0.492	3.110	Quote
FS2764X12X12	1.500	1-3/16-12	0.610	1-1/16-12	0.610	3.110	Quote
