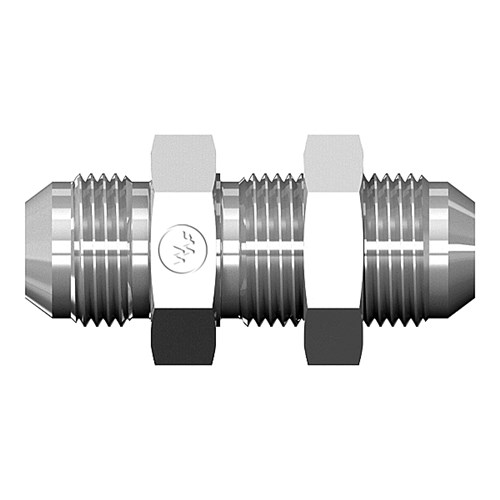

Bulkhead Union With Locknut

Share Print Page

You have not viewed any products recently.

5325LNd

Enlarge

5325LNd

Attributes	Values
Product #	5325LN
Aeroquip	2041-[R]
Parker	WTX-WLN
AirWay	2700-LN
SAE	070601
Stainless Part No	2700-LN-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

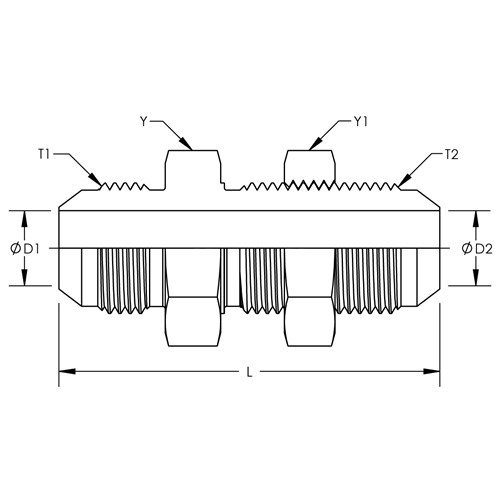

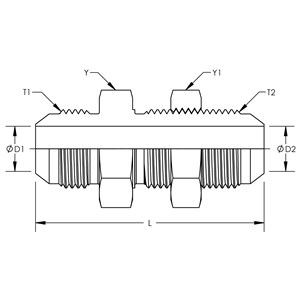

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	L
5325X04X04LN	0.688	0.688	7/16-20	0.172	7/16-20	0.172	2.070	Quote
5325X05X05LN	0.750	0.750	1/2-20	0.234	1/2-20	0.234	2.070	Quote
5325X06X06LN	0.813	0.813	9/16-18	0.297	9/16-18	0.297	2.180	Quote
5325X08X08LN	1.000	1.000	3/4-16	0.391	3/4-16	0.391	2.440	Quote
5325X10X10LN	1.125	1.125	7/8-14	0.484	7/8-14	0.484	2.740	Quote
5325X12X12LN	1.375	1.375	1-1/16-12	0.609	1-1/16-12	0.609	3.090	Quote
5325X16X16LN	1.625	1.625	1-5/16-12	0.844	1-5/16-12	0.844	3.140	Quote
5325X20X20LN	1.875	1.875	1-5/8-12	1.078	1-5/8-12	1.078	3.310	Quote
5325X24X24LN	2.125	2.125	1-7/8-12	1.313	1-7/8-12	1.313	3.520	Quote
