Female JIC, Female JIC, Male JIC Tee

Share Print Page

You have not viewed any products recently.

6603

Enlarge

6603

There are no alternate images available for this product.

Attributes	Values
Product #	6603
AirWay	6603
Stainless Part No	6603-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

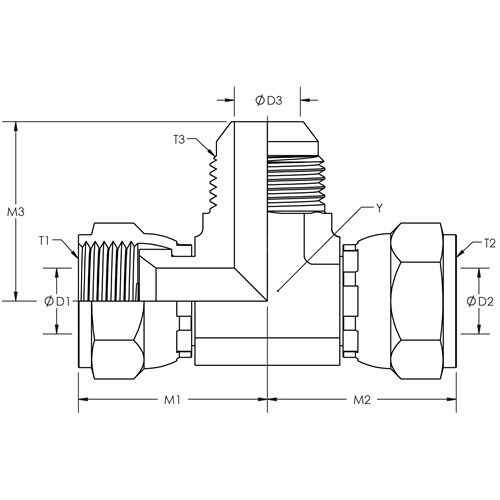

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
6603X04X04X04	0.438	7/16-20	1.000	0.172	7/16-20	1.000	0.172	7/16-20	0.890	0.172	Quote
6603X06X06X06	0.563	9/16-18	1.250	0.297	9/16-18	1.250	0.297	9/16-18	1.060	0.297	Quote
6603X08X08X08	0.750	3/4-16	1.380	0.391	3/4-16	1.380	0.391	3/4-16	1.250	0.391	Quote
6603X10X10X10	0.875	7/8-14	1.620	0.484	7/8-14	1.620	0.484	7/8-14	1.450	0.484	Quote
6603X12X12X12	1.063	1-1/16-12	1.750	0.609	1-1/16-12	1.750	0.609	1-1/16-12	1.660	0.609	Quote
6603X16X16X16	1.313	1-5/16-12	2.000	0.844	1-5/16-12	2.000	0.844	1-5/16-12	1.810	0.844	Quote
