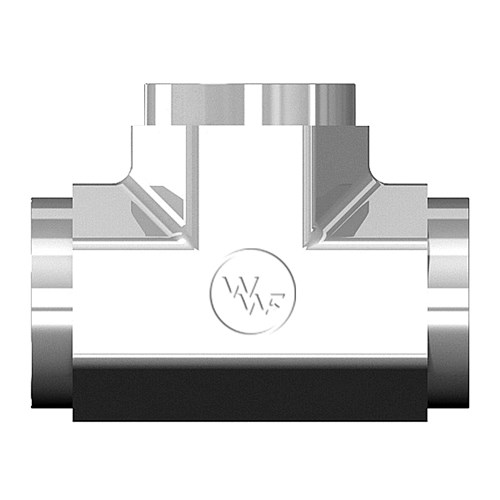

Female Pipe Tee Stainless Steel

Share Print Page

You have not viewed any products recently.

F3709d

Enlarge

F3709d

Attributes	Values
Product #	5605SS
AirWay	5605SS
Material	Stainless Steel

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

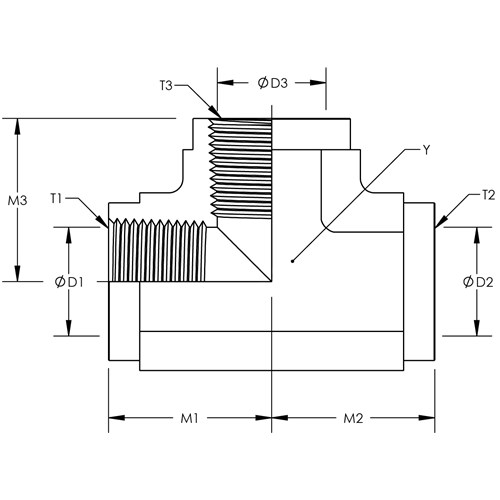

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
5605X04X04X04SS	0.750	1/4-18	0.880	0.438	1/4-18	0.880	0.438	1/4-18	0.880	0.438	Quote
5605X06X06X06SS	0.875	3/8-18	1.020	0.563	3/8-18	1.020	0.563	3/8-18	1.020	0.563	Quote
5605X08X08X08SS	1.063	1/2-14	1.230	0.703	1/2-14	1.230	0.703	1/2-14	1.230	0.703	Quote
5605X12X12X12SS	1.313	3/4-14	1.360	0.906	3/4-14	1.360	0.906	3/4-14	1.360	0.906	Quote
5605X16X16X16SS	1.625	1-11-1/2	1.620	1.141	1-11-1/2	1.620	1.141	1-11-1/2	1.620	1.141	Quote
