Home>Products>Steel O Ring Face Seal Fittings>Female Swivel to Male JIC

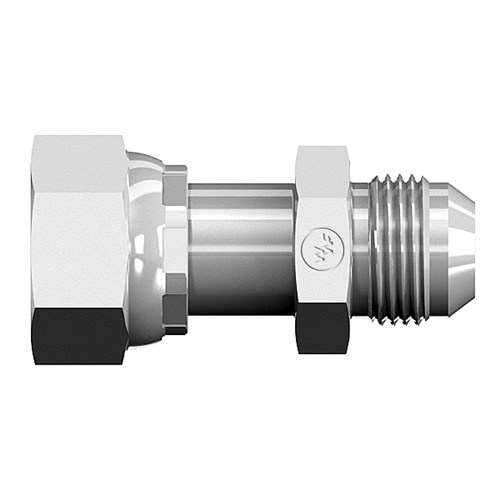

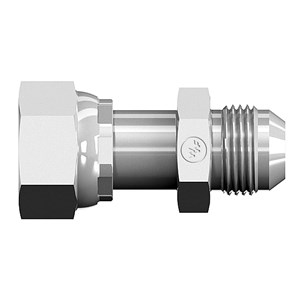

Female Swivel to Male JIC

Share Print Page

You have not viewed any products recently.

4213d

Enlarge

4213d

Attributes	Values
Product #	4213
Gates	FFORX-MJ
Aeroquip	FF2209T
Parker	XHL6
AirWay	FS6504

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

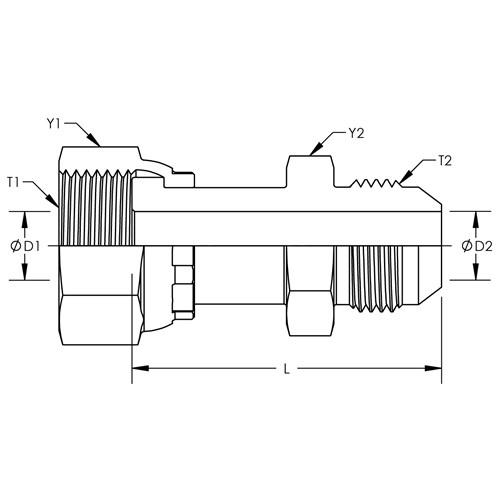

Part #	Y1 Hex	Y2 Hex	T1	D1	T2	D2	L
4213X04X04	0.688	0.625	9/16-18	0.157	7/16-20	0.172	1.574	Quote
4213X06X06	0.813	0.750	11/16-16	0.256	9/16-18	0.297	1.658	Quote
4213X08X08	0.938	0.875	13/16-16	0.354	3/4-16	0.391	2.055	Quote
4213X10X10	1.125	1.063	1-14	0.453	7/8-14	0.484	2.254	Quote
4213X12X12	1.375	1.250	1-3/16-12	0.551	1-1/16-12	0.609	2.478	Quote
4213X16X16	1.625	1.500	1-7/16-12	0.787	1-5/16-12	0.844	2.840	Quote
4213X20X20	1.875	1.875	1-11/16-12	1.024	1-5/8-12	1.078	2.887	Quote
