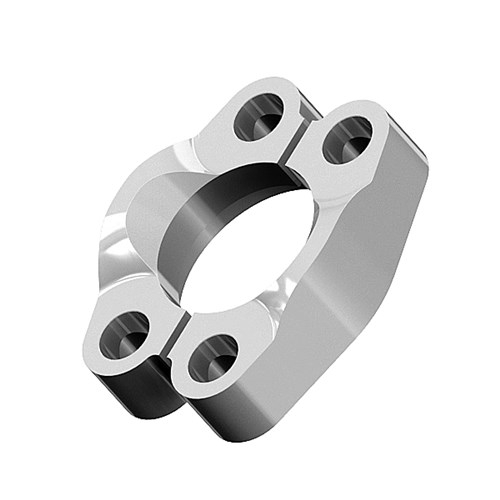

Flange Half - Code 62

Share Print Page

You have not viewed any products recently.

1952d

Enlarge

1952d

Attributes	Values
Product #	1952
AirWay	1952

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

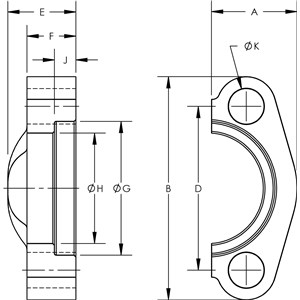

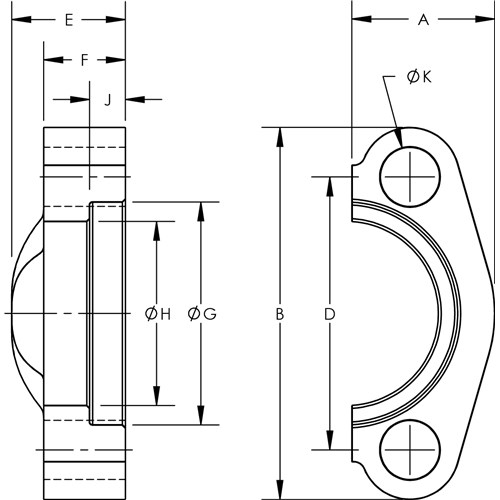

Part #	D	E	Flange Size	A	B	F	G	H	J	K
1952X08	1.594	0.880	1/2	0.890	2.220	0.620	1.281	0.970	0.285	0.344	Quote
1952X12	2.000	1.120	¾	1.140	2.795	0.750	1.656	1.280	0.325	0.406	Quote
1952X16	2.250	1.310	1	1.330	3.190	0.940	1.906	1.530	0.355	0.469	Quote
1952X20	2.625	1.500	1-1/4	1.480	3.750	1.060	2.156	1.750	0.385	0.531	Quote
1952X24	3.125	1.690	1-1/2	1.830	4.440	1.190	2.531	2.030	0.475	0.656	Quote
1952X32	3.812	2.060	2	2.200	5.250	1.440	3.156	2.660	0.475	0.781	Quote
