Home>Products>Steel Flareless Fittings>Male Branch Tee

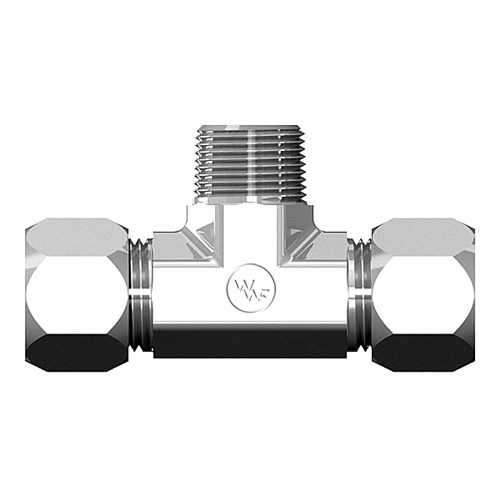

Male Branch Tee

Share Print Page

You have not viewed any products recently.

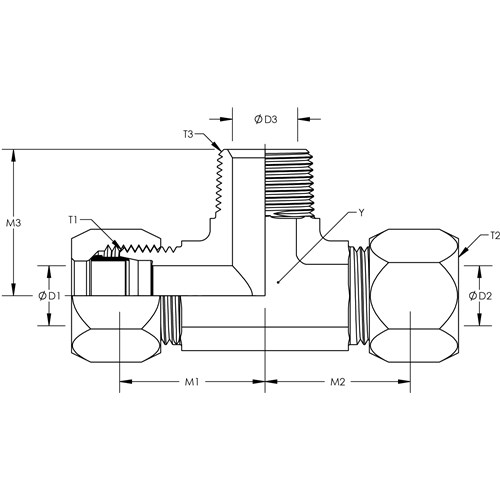

7605d

Enlarge

7605d

Attributes	Values
Product #	7605
Parker	SBU
AirWay	C2601
SAE	080425
Stainless Part No	C2601-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
7605X04X04X02	0.438	7/16-20	0.890	0.203	7/16-20	0.890	0.203	1/8-27	0.780	0.188	Quote
7605X04X04X04	0.563	7/16-20	1.030	0.203	7/16-20	1.030	0.203	1/4-18	1.090	0.281	Quote
7605X06X06X04	0.563	9/16-18	1.050	0.281	9/16-18	1.050	0.281	1/4-18	1.090	0.281	Quote
7605X08X08X06	0.750	3/4-16	1.250	0.422	3/4-16	1.250	0.422	3/8-18	1.220	0.406	Quote
7605X08X08X08	0.875	3/4-16	1.350	0.422	3/4-16	1.350	0.422	1/2-14	1.470	0.531	Quote
7605X10X10X08	0.875	7/8-14	1.420	0.500	7/8-14	1.420	0.500	1/2-14	1.470	0.531	Quote
7605X12X12X12	1.063	1-1/16-12	1.580	0.656	1-1/16-12	1.580	0.656	3/4-14	1.590	0.719	Quote
7605X14X14X12	1.313	1-3/16-12	1.660	0.719	1-3/16-12	1.660	0.719	3/4-14	1.690	0.719	Quote
7605X16X16X16	1.313	1-5/16-12	1.730	0.875	1-5/16-12	1.730	0.875	1-11-1/2	1.970	0.938	Quote
