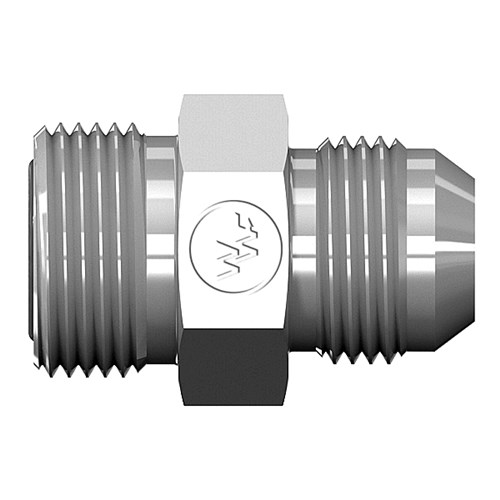

Male Faceseal End to Male JIC End

Share Print Page

You have not viewed any products recently.

FS6403d

Enlarge

FS6403d

Attributes	Values
Product #	FS6403
Aeroquip	FF2313T
Parker	XHLO
AirWay	FS6403

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

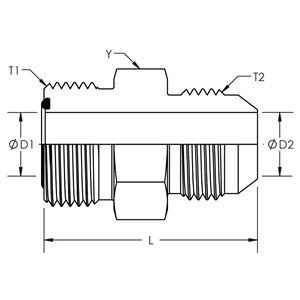

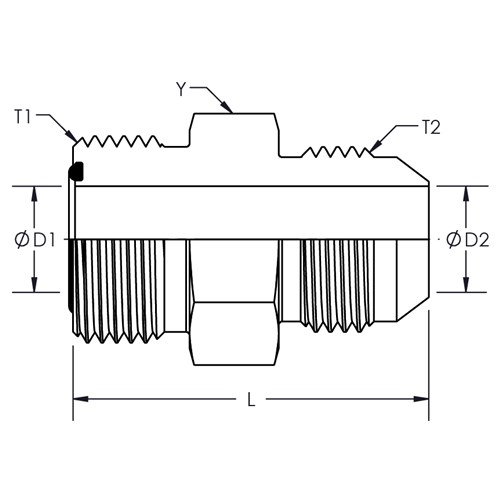

Part #	Y Hex	T1	D1	T2	D2	L
FS6403X04X04	0.625	9/16-18	0.172	7/16-20	0.172	1.250	Quote
FS6403X06X06	0.750	11/16-16	0.256	9/16-18	0.256	1.340	Quote
FS6403X08X08	0.875	13/16-16	0.374	3/4-16	0.374	1.550	Quote
FS6403X10X10	1.063	1-14	0.484	7/8-14	0.484	1.830	Quote
FS6403X12X12	1.250	FF2313T	0.610	1-1/16-12	0.610	2.050	Quote
FS6403X16X16	1.500	1-7/16-12	0.807	1-5/16-12	0.807	2.160	Quote
