Home>Products>Steel 37 Flare (JIC) Fittings>Straight Thread Connector Long

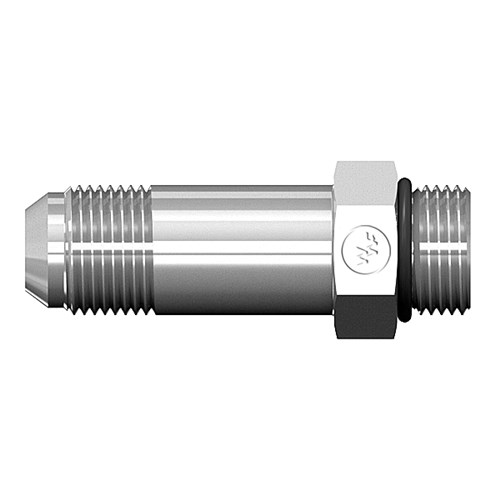

Straight Thread Connector Long

Share Print Page

You have not viewed any products recently.

5316d

Enlarge

5316d

Attributes	Values
Product #	5316
Gates	/
Aeroquip	202713-[R]
Parker	FF5O-X
AirWay	6400-L
SAE	071720
Stainless Part No	6400-L-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

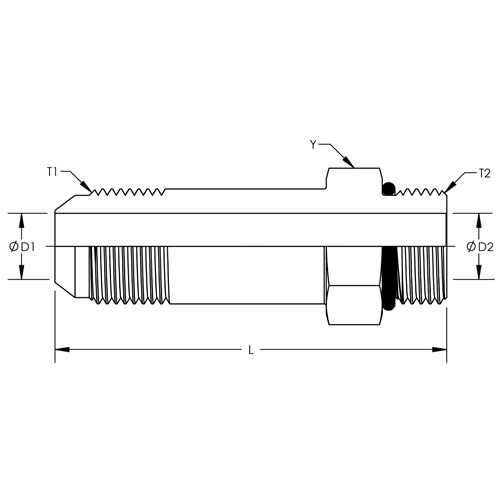

Part #	Y Hex	T1	D1	T2	D2	L
5316X04X04	0.563	7/16-20	0.172	7/16-20	0.172	2.080	Quote
5316X05X05	0.625	1/2-20	0.234	1/2-20	0.234	2.140	Quote
5316X06X06	0.688	9/16-18	0.297	9/16-18	0.297	2.310	Quote
5316X06X08	0.875	9/16-18	0.297	3/4-16	0.391	2.600	Quote
5316X08X08	0.875	3/4-16	0.391	3/4-16	0.391	2.700	Quote
5316X08X10	1.000	3/4-16	0.391	7/8-14	0.484	2.940	Quote
5316X10X10	1.000	7/8-14	0.484	7/8-14	0.484	3.040	Quote
5316X12X12	1.250	1-1/16-12	0.609	1-1/16-12	0.609	3.610	Quote
5316X16X16	1.500	1-5/16-12	0.844	1-5/16-12	0.844	3.980	Quote
5316X20X20	1.875	1-5/8-12	1.078	1-5/8-12	1.078	4.690	Quote
