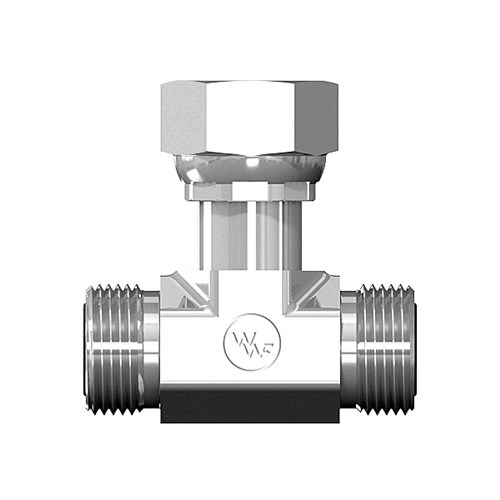

Swivel Branch Tee Metric Hex

Share Print Page

You have not viewed any products recently.

4707MHd

Enlarge

4707MHd

Attributes	Values
Product #	4707MH
Gates	/
Aeroquip	/
Parker	S6MLO
AirWay	FS6600-H
Stainless Part No	/

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

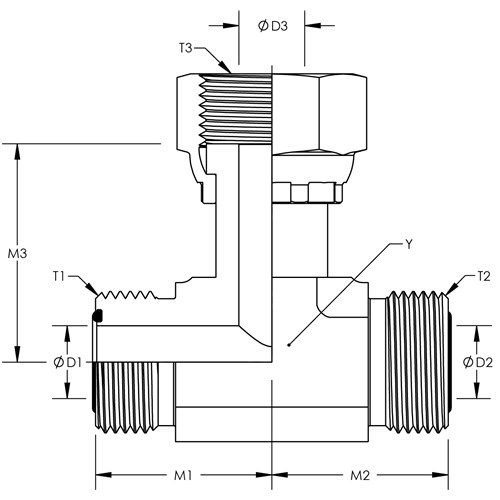

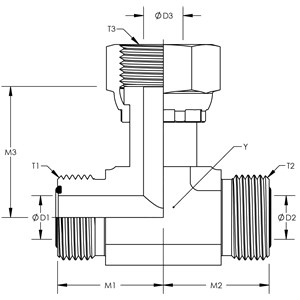

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4707X10X10X10MH	0.945	1-14	1.319	0.492	1-14	1.319	0.492	1-14	1.614	0.453	Quote
4707X12X12X12MH	1.063	1-3/16-12	1.476	0.610	1-3/16-12	1.476	0.610	1-3/16-12	1.831	0.551	Quote
