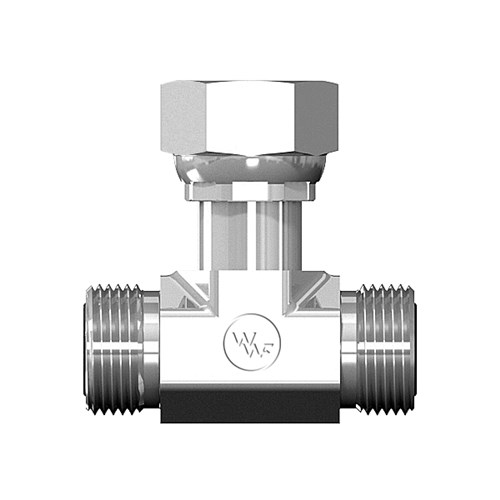

Swivel Branch Tee

Share Print Page

You have not viewed any products recently.

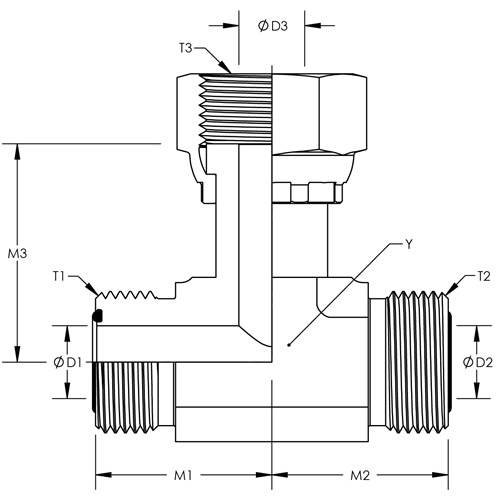

4707d

Enlarge

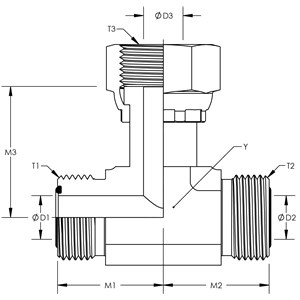

4707d

Attributes	Values
Product #	4707
Gates	MFFOR-MFFOR-FFORX
Aeroquip	FF1857T
Parker	S6LO
AirWay	FS6600
SAE	520433
Stainless Part No	/

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4707X04X04X04	0.563	9/16-18	0.846	0.177	9/16-18	0.846	0.177	9/18-18	1.043	0.157	Quote
4707X06X06X06	0.669	11/16-16	0.984	0.256	11/16-16	0.984	0.256	11/16-16	1.142	0.256	Quote
4707X08X08X08	0.750	13/16-16	1.102	0.374	13/16-16	1.102	0.374	13/16-16	1.496	0.354	Quote
4707X10X10X10	1.063	1-14	1.319	0.492	1-14	1.319	0.492	1-14	1.614	0.453	Quote
4707X12X12X12	1.188	1-3/16-12	1.476	0.610	1-3/16-12	1.476	0.610	1-3/16-12	1.831	0.551	Quote
4707X16X16X16	1.438	1-7/16-12	1.634	0.807	1-7/16-12	1.634	0.807	1-7/16-12	2.106	0.787	Quote
4707X24X24X24	1.875	2-12	1.929	1.260	2-12	1.929	1.260	2-12	2.401	1.260	Quote
