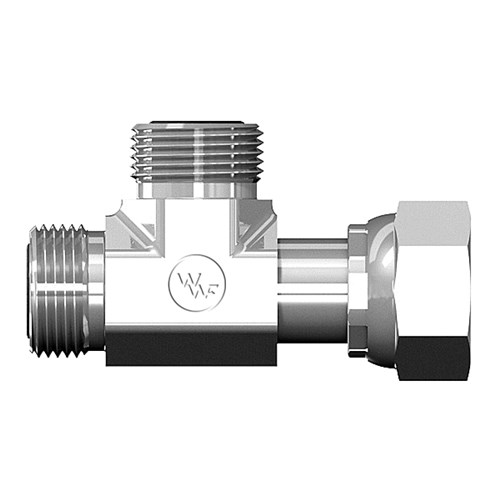

Swivel Run Tee

Share Print Page

You have not viewed any products recently.

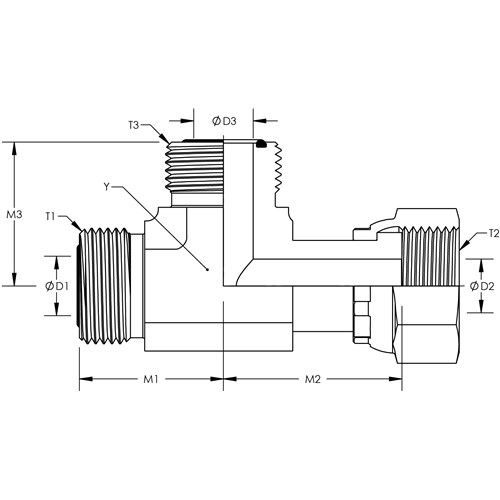

4706d

Enlarge

4706d

Attributes	Values
Product #	4706
Gates	/
Aeroquip	FF2114T
Parker	R6LO
AirWay	FS6602
SAE	520432
Stainless Part No	/

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4706X04X04X04	0.563	9/16-18	0.846	0.177	9/16-18	1.043	0.157	9/16-18	0.846	0.177	Quote
4706X06X06X06	0.669	11/16-16	0.984	0.256	11/16-16	1.142	0.256	11/16-16	0.984	0.256	Quote
4706X06X06X08	0.750	11/16-16	1.043	0.256	11/16-16	1.378	0.256	13/16-16	1.102	0.374	Quote
4706X08X08X08	0.750	13/16-16	1.102	0.374	13/16-16	1.496	0.354	13/16-16	1.102	0.374	Quote
4706X10X10X10	1.063	1-14	1.319	0.492	1-14	1.614	0.453	1-14	1.319	0.492	Quote
4706X12X10X10	1.188	1-3/16-12	1.476	0.610	1-14	1.732	0.453	1-14	1.417	0.492	Quote
4706X12X12X10	1.188	1-3/16-12	1.476	0.610	1-3/16-12	1.831	0.551	1-14	1.417	0.492	Quote
4706X12X12X12	1.188	1-3/16-12	1.476	0.610	1-3/16-12	1.831	0.551	1-3/16-12	1.476	0.610	Quote
4706X16X16X16	1.438	1-7/16-12	1.634	0.807	1-7/16-12	2.106	0.787	1-7/16-12	1.634	0.807	Quote
4706X20X20X20	1.625	1-11/16-12	1.752	1.024	1-11/16-12	2.283	1.024	1-11/16-12	1.752	1.024	Quote
4706X24X24X24	1.875	2-12	1.929	1.260	2-12	2.401	1.260	2-12	1.929	1.260	Quote
