Home>Products>Steel 37 Flare (JIC) Fittings>Union Tee

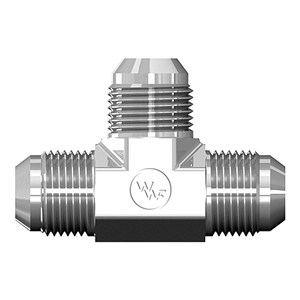

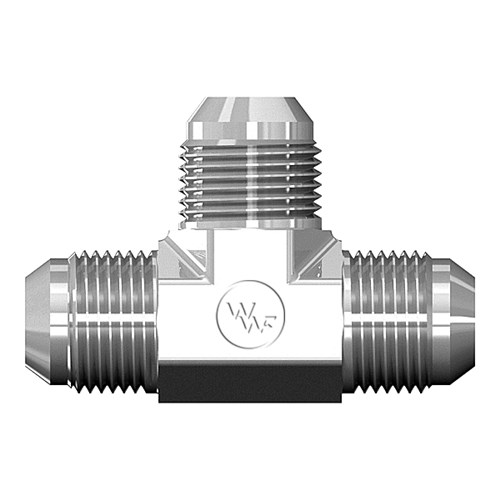

Union Tee

Share Print Page

You have not viewed any products recently.

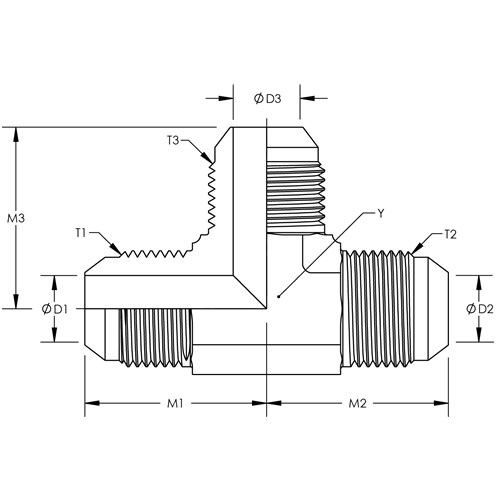

F5705d

Enlarge

F5705d

Attributes	Values
Product #	F5705
Gates	MJ-MJ-MJ
Aeroquip	2033
Parker	JTX
AirWay	2603
SAE	070401
Stainless Part No	2603-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
F5705X02X02X02	0.438	5/16-24	0.770	0.063	5/16-24	0.770	0.063	5/16-24	0.770	0.063	Quote
F5705X03X03X03	0.438	3/8-24	0.830	0.125	3/8-24	0.830	0.125	3/8-24	0.830	0.125	Quote
F5705x04x04x04	0.438	7/16-20	0.890	0.172	7/16-20	0.890	0.172	7/16-20	0.890	0.172	Quote
F5705x04x04x06	0.563	7/16-20	1.050	0.172	7/16-20	1.050	0.172	9/16-18	1.060	0.297	Quote
F5705x05x05x05	0.563	1/2-20	0.950	0.234	1/2-20	0.950	0.234	1/2-20	0.950	0.234	Quote
F5705x06x06x04	0.563	9/16-18	1.060	0.297	9/16-18	1.060	0.297	7/16-20	1.050	0.172	Quote
F5705x06x06x06	0.563	9/16-18	1.060	0.297	9/16-18	1.060	0.297	9/16-18	1.060	0.297	Quote
F5705x06x06x08	0.750	9/16-18	1.140	0.297	9/16-18	1.140	0.297	3/4-16	1.250	0.391	Quote
F5705x08x08x08	0.750	3/4-16	1.250	0.391	3/4-16	1.250	0.391	3/4-16	1.250	0.391	Quote
F5705x08x08x12	1.063	3/4-16	1.420	0.391	3/4-16	1.420	0.391	1-1/16-12	1.660	0.609	Quote
F5705X10X08X08	0.875	7/8-14	1.450	0.484	3/4-16	1.330	0.391	3/4-16	1.330	0.391	Quote
F5705x10x10x08	0.875	7/8-14	1.450	0.484	7/8-14	1.450	0.484	3/4-16	1.330	0.391	Quote
F5705x10x10x10	0.875	7/8-14	1.450	0.484	7/8-14	1.450	0.484	7/8-14	1.450	0.484	Quote
F5705x12x12x08	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	3/4-16	1.420	0.391	Quote
F5705x12x12x12	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	Quote
F5705x12x12x16	1.313	1-1/16-12	1.760	0.609	1-1/16-12	1.760	0.609	1-5/16-12	1.810	0.844	Quote
F5705x14x14x14	1.313	1-3/16-12	1.800	0.719	1-3/16-12	1.800	0.719	1-3/16-12	1.800	0.719	Quote
F5705x16x12x20	1.625	1-5/16-12	2.010	0.844	1-1/16-12	1.970	0.609	1-5/8-12	2.060	1.078	Quote
F5705x16x16x16	1.313	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	Quote
F5705x16x16x20	1.625	1-5/16-12	2.010	0.844	1-5/16-12	2.010	0.844	1-5/8-12	2.060	1.078	Quote
F5705x20x16x16	1.625	1-5/8-12	2.060	1.078	1-5/16-12	2.010	0.844	1-5/16-12	2.010	0.844	Quote
F5705x20x20x20	1.625	1-5/8-12	2.060	1.078	1-5/8-12	2.060	1.078	1-5/8-12	2.060	1.078	Quote
F5705x24x24x24	1.875	1-7/8-12	2.330	1.313	1-7/8-12	2.330	1.313	1-7/8-12	2.330	1.313	Quote
F5705x32x32x32	2.500	2-1/2-12	3.060	1.781	2-1/2-12	3.060	1.781	2-1/2-12	3.060	1.781	Quote
