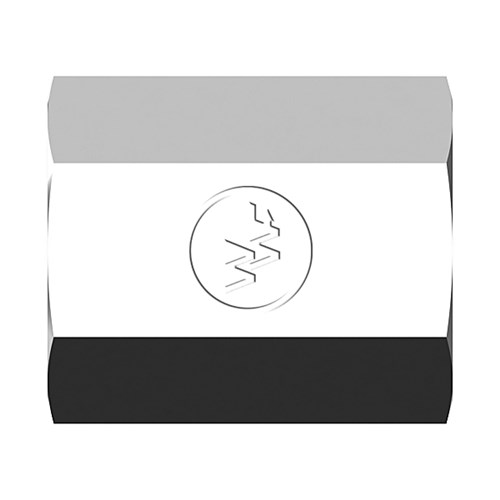

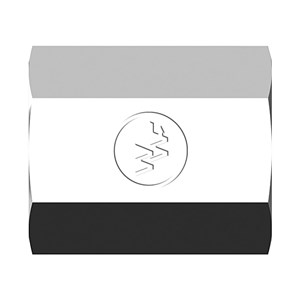

female orb to female orb straight

分享列印頁面

You have not viewed any products recently.

6425d

放大

6425d

Attributes	Values
Product #	6425
AirWay	6425
Stainless Part No	6425-SS

可用性
请致电客户服务 847.588.2200

Units

ENGLISH

METRIC

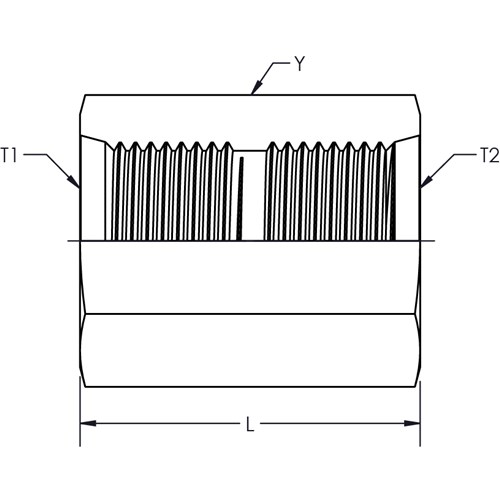

Part #	Y Hex	T1	T2	L
6425X04X04	0.688	7/16-20	7/16-20	1.130	价格估计
6425X06X06	0.813	9/16-18	9/16-18	1.260	价格估计
6425X08X08	1.000	3/4-16	3/4-16	1.420	价格估计
6425X10X10	1.188	7/8-14	7/8-14	1.600	价格估计
6425X12X12	1.375	1-1/16-12	1-1/16-12	1.850	价格估计
6425X16X16	1.625	1-5/16-12	1-5/16-12	1.950	价格估计
6425X20X20	2.000	1-5/8-12	1-5/8-12	2.100	价格估计
