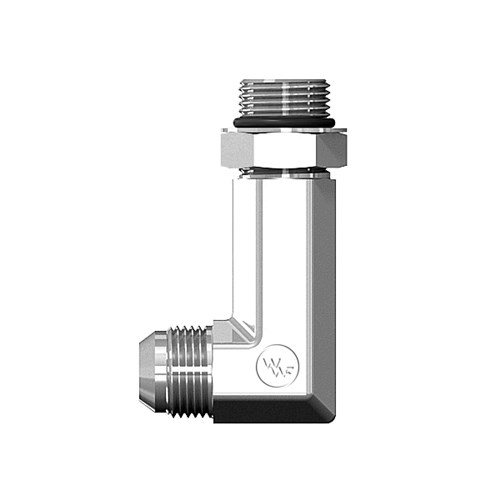

90° Straight Thread Elbow Extra Long

Share Print Page

You have not viewed any products recently.

F5515LLd

Enlarge

F5515LLd

Attributes	Values
Product #	F5515LL
Parker	CC5OX
AirWay	6801-LL
SAE	071620
Stainless Part No	6801-LL-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

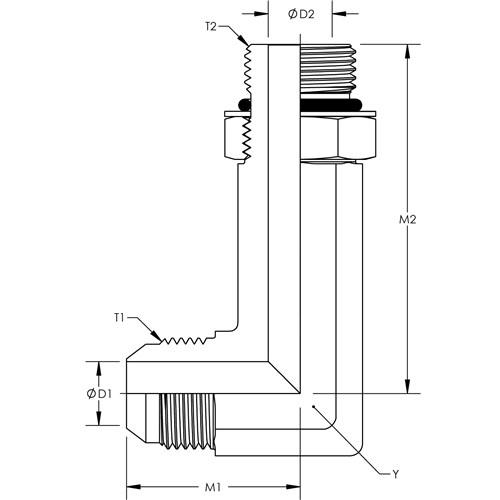

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5515X04X04LL	0.438	7/16-20	0.890	0.172	7/16-20	1.730	0.172	Quote
F5515X04X06LL	0.563	7/16-20	1.050	0.172	9/16-18	2.080	0.297	Quote
F5515X06X06LL	0.563	9/16-18	1.060	0.297	9/16-18	2.080	0.297	Quote
F5515X06X08LL	0.750	9/16-18	1.140	0.297	3/4-16	2.480	0.391	Quote
F5515X08X06LL	0.750	3/4-16	1.250	0.391	9/16-18	2.350	0.297	Quote
F5515X08X08LL	0.750	3/4-16	1.250	0.391	3/4-16	2.480	0.391	Quote
F5515X08X10LL	0.875	3/4-16	1.330	0.391	7/8-14	2.890	0.484	Quote
F5515X10X08LL	0.875	7/8-14	1.450	0.484	3/4-16	2.730	0.391	Quote
F5515X10X10LL	0.875	7/8-14	1.450	0.484	7/8-14	2.890	0.484	Quote
F5515X12X12LL	1.063	1-1/16-12	1.660	0.609	1-1/16-12	3.340	0.609	Quote
F5515X16X12LL	1.313	1-5/16-12	1.810	0.844	1-1/16-12	3.720	0.609	Quote
F5515X16X16LL	1.313	1-5/16-12	1.810	0.844	1-5/16-12	3.720	0.844	Quote
F5515X20X20LL	1.625	1-5/8-12	2.060	1.078	1-5/8-12	4.410	1.078	Quote
