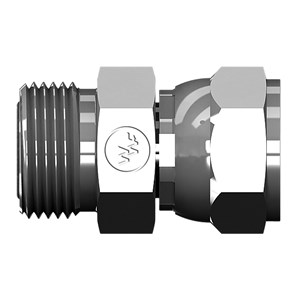

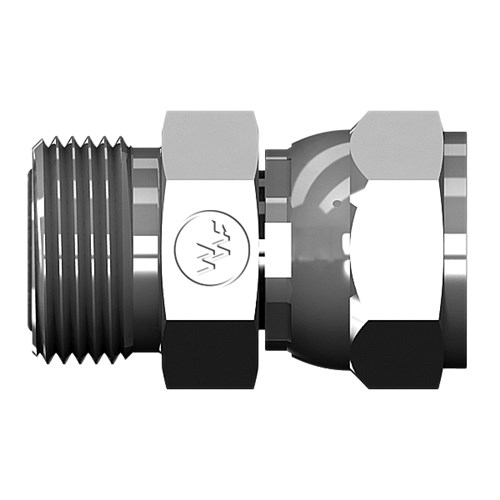

Male Faceseal to Female JIC Swivel

Share Print Page

You have not viewed any products recently.

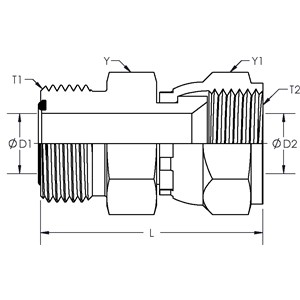

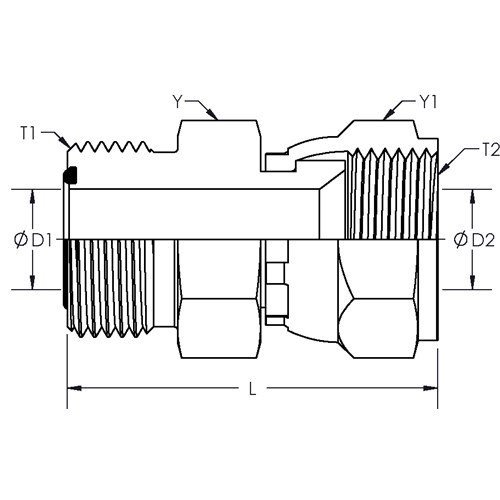

FS6402d

Enlarge

FS6402d

Attributes	Values
Product #	FS6402
AirWay	FS6402

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	L
FS6402X04X04	0.625	0.563	9/16-18	0.172	7/16-20	0.172	1.344	Quote
FS6402X06X06	0.750	0.688	11/16-16	0.256	9/16-16	0.256	1.565	Quote
FS6402X08X08	0.875	0.875	13/16-16	0.374	3/4-16	0.374	1.770	Quote
FS6402X10X10	1.063	1.000	1-14	0.484	7/8-14	0.484	2.060	Quote
FS6402X12X12	1.250	1.250	1-3/16-12	0.609	1-1/16-12	0.609	2.250	Quote
