Equipment which makes use of hydraulic or pneumatic fluid lines must be properly designed for efficiency, ease of assembly, and leak free operation. Consider the following points when designing a fluid system.

  1. Proper routing of lines to avoid pressure drops and excessive strain on joints.
  2. Make joints accessible for easy installation and future maintenance.
  3. Have tube supports installed to further eliminate strain on tube lines and excess noise from the system.

Refer to drawings of fluid line fabrications for examples of proper and improper routing.

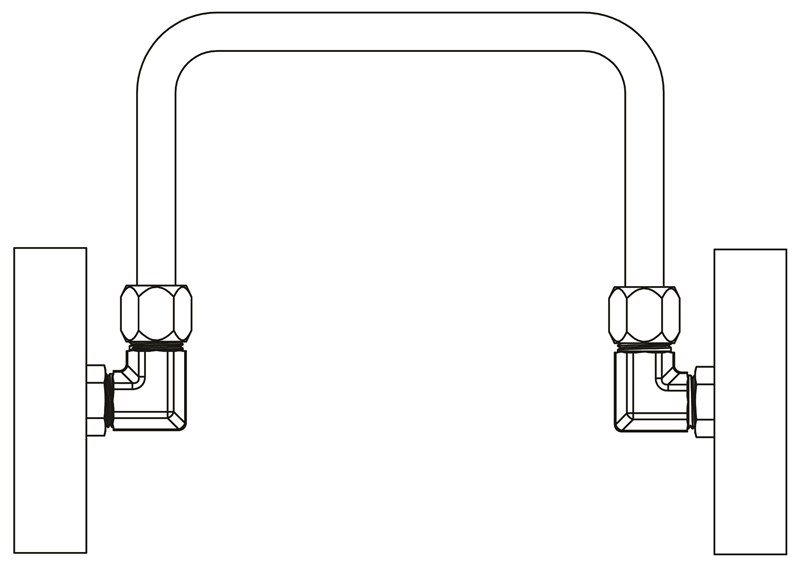

Correct_routing_1
Correct Routing

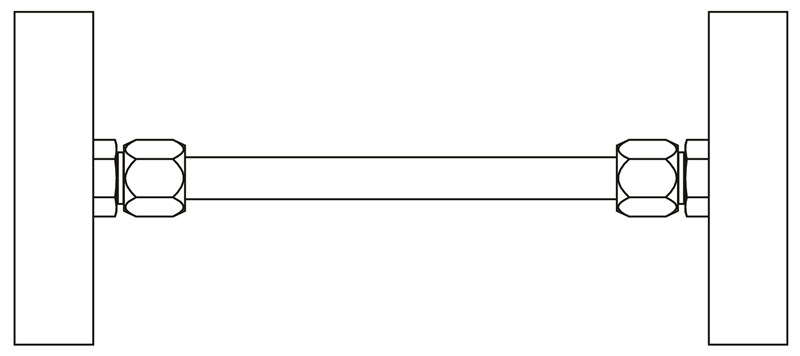

Incorrect_routing_2

Incorrect Routing

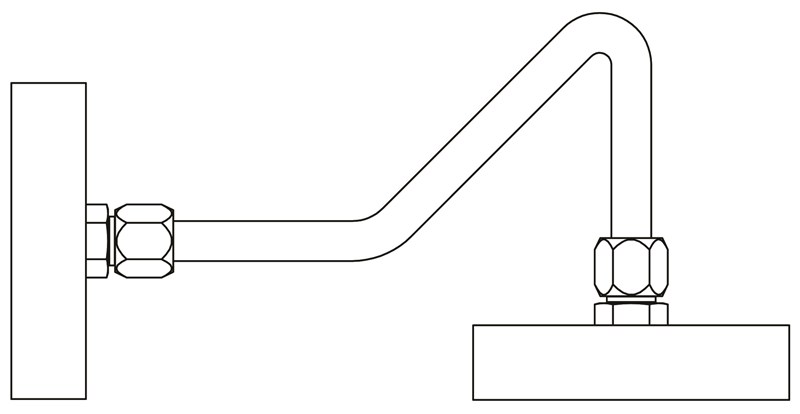

Correct_routing_3
Correct Routing

Incorrect_routing_4
Incorrect Routing

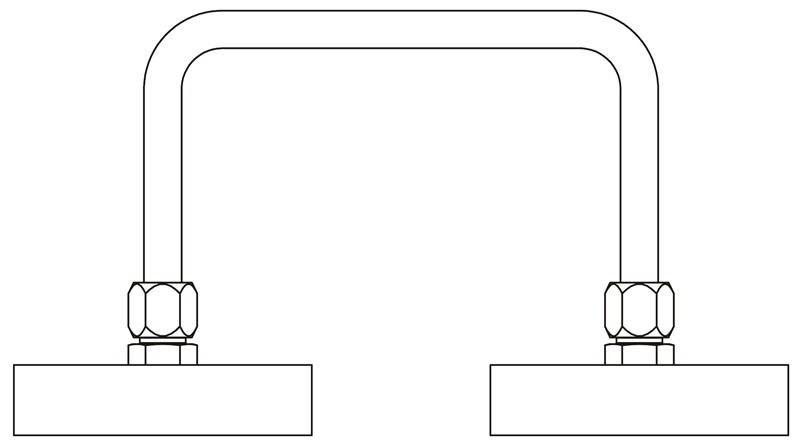

Correct_routing_5

Correct Routing

Incorrect_routing_6

Incorrect Routing

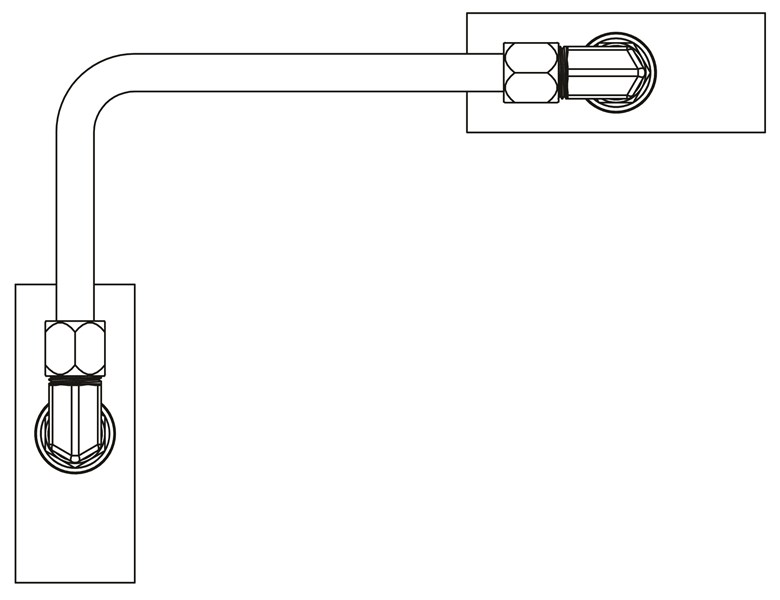

Correct_routing_7

Correct Routing

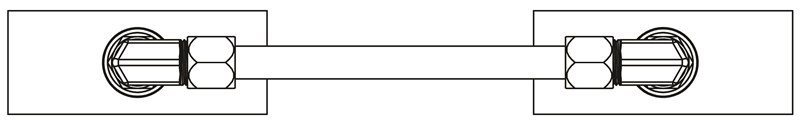

Incorrect_routing_8

Incorrect Routing
