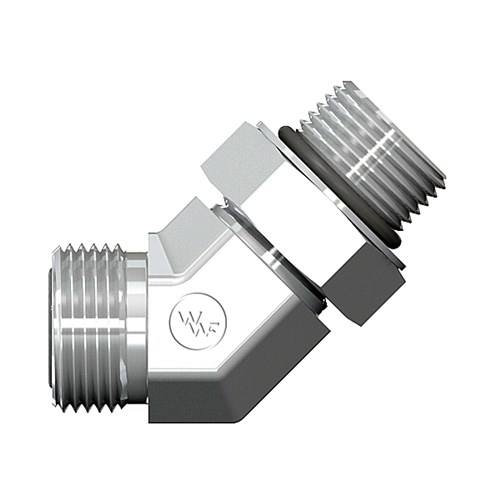

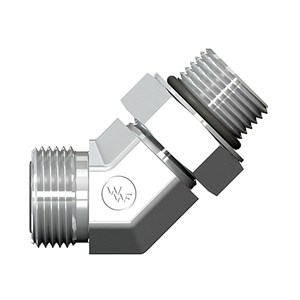

45° Adjustable Stud Elbow

Share Print Page

You have not viewed any products recently.

4365d

Enlarge

4365d

Attributes	Values
Product #	4365
Gates	MFFOR-MB45
Aeroquip	FF2068T
Parker	V5OLO
AirWay	FS6802
SAE	520320

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

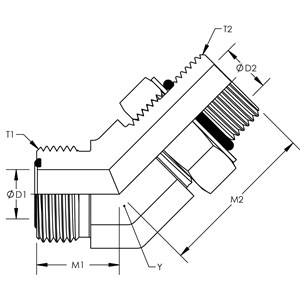

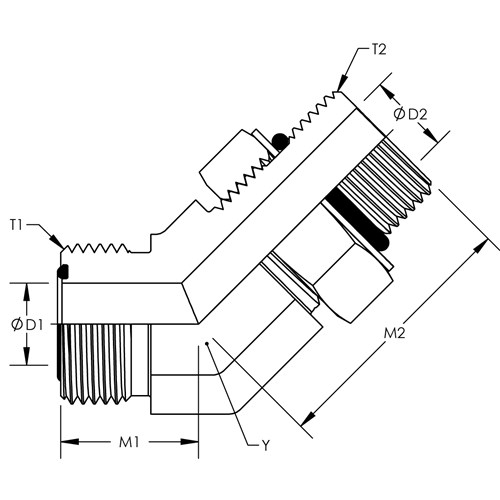

Part #	Y Hex	T1	M1	D1	T2	M2	D2
4365X04X03	0.563	9/16-18	0.630	0.177	3/8-24	1.102	0.118	Quote
4365X04X04	0.563	9/16-18	0.630	0.177	7/16-20	1.181	0.177	Quote
4365X04X06	0.669	9/16-18	0.689	0.177	9/16-18	1.300	0.295	Quote
4365X06X04	0.669	11/16-16	0.748	0.256	7/16-20	1.220	0.177	Quote
4365X06X06	0.669	11/16-16	0.748	0.256	9/16-18	1.300	0.295	Quote
4365X06X08	0.750	11/16-16	0.748	0.256	3/4-16	1.438	0.394	Quote
4365X08X06	0.750	13/16-16	0.807	0.374	9/16-18	1.280	0.295	Quote
4365X08X08	0.750	13/16-16	0.807	0.374	3/4-16	1.438	0.394	Quote
4365X08X10	1.063	13/16-16	0.846	0.374	7/8-14	1.752	0.492	Quote
4365X08X12	1.188	13/16-16	0.886	0.374	1-1/16-12	1.969	0.610	Quote
4365X10X08	1.063	1-14	0.925	0.492	3/4-16	1.575	0.394	Quote
4365X10X10	1.063	1-14	0.925	0.492	7/8-14	1.752	0.492	Quote
4365X10X12	1.188	1-14	0.964	0.492	1-1/16-12	1.969	0.610	Quote
4365X12X08	1.188	1-3/16-12	1.024	0.610	3/4-16	1.634	0.394	Quote
4365X12X10	1.188	1-3/16-12	1.024	0.610	7/8-14	1.811	0.492	Quote
4365X12X12	1.188	1-3/16-12	1.024	0.610	1-1/16-12	1.969	0.610	Quote
4365X12X16	1.438	1-3/16-12	1.161	0.610	1-5/16-12	2.067	0.846	Quote
4365X16X12	1.438	1-7/16-12	1.181	0.807	1-1/16-12	2.028	0.610	Quote
4365X16X16	1.438	1-7/16-12	1.181	0.807	1-5/16-12	2.067	0.846	Quote
4365X16X20	1.625	1-7/16-12	1.260	0.807	1-5/8-12	2.106	1.082	Quote
4365X20X16	1.625	1-11/16-12	1.260	1.024	1-5/16-12	2.106	0.846	Quote
4365X20X20	1.625	1-11/16-12	1.260	1.024	1-5/8-12	2.106	1.082	Quote
4365X24X24	1.875	2-12	1.457	1.260	1-7/8-12	2.106	1.319	Quote
