Home>Products>Steel 37 Flare (JIC) Fittings>45° Bulkhead Elbow With Locknut

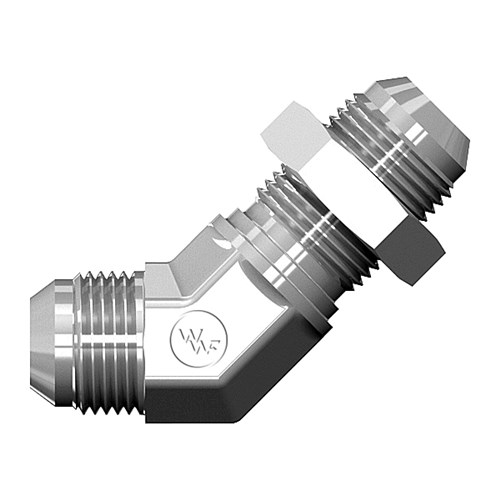

45° Bulkhead Elbow With Locknut

Share Print Page

You have not viewed any products recently.

F5375LNd

Enlarge

F5375LNd

Attributes	Values
Product #	F5375LN
Aeroquip	2042
Parker	WNTX-WLN
AirWay	2702-LN
SAE	070801
Stainless Part No	2702-LN-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

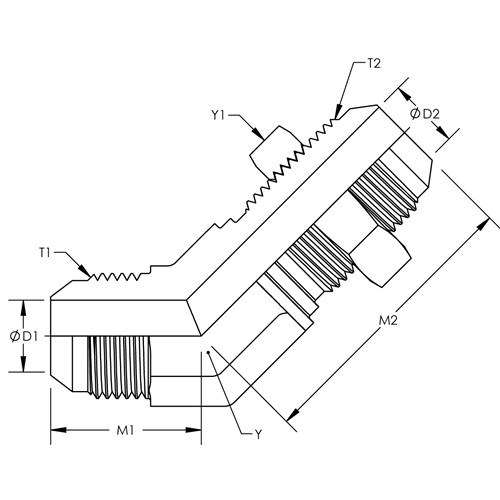

Part #	Y Hex	Y1 Hex	T1	M1	D1	T2	M2	D2
F5375X03X03LN	0.438	0.375	3/8-24	0.690	0.125	3/8-24	1.420	0.125	Quote
F5375X04X04LN	0.438	0.688	7/16-20	0.720	0.172	7/16-20	1.530	0.172	Quote
F5375X05X05LN	0.563	0.750	1/2-20	0.770	0.234	1/2-20	1.660	0.234	Quote
F5375X06X06LN	0.563	0.813	9/16-18	0.830	0.297	9/16-18	1.670	0.297	Quote
F5375X08X06LN	0.750	0.813	3/4-16	0.980	0.391	9/16-18	1.830	0.297	Quote
F5375X08X08LN	0.750	1.000	3/4-16	0.980	0.391	3/4-16	1.940	0.391	Quote
F5375X10X10LN	0.875	1.125	7/8-14	1.110	0.484	7/8-14	2.170	0.484	Quote
F5375X12X12LN	1.063	1.375	1-1/16-12	1.280	0.609	1-1/16-12	2.440	0.609	Quote
F5375X16X16LN	1.313	1.625	1-5/16-12	1.470	0.844	1-5/16-12	2.560	0.844	Quote
F5375X20X20LN	1.625	1.875	1-5/8-12	1.590	1.078	1-5/8-12	2.650	1.078	Quote
F5375X24X24LN	1.875	2.125	1-7/8-12	1.780	1.313	1-7/8-12	2.670	1.313	Quote
