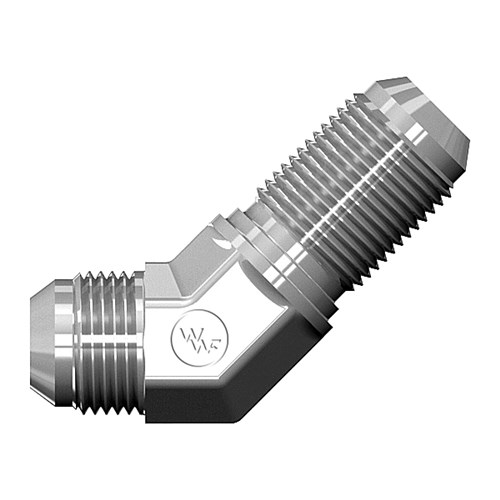

45° Bulkhead Elbow

Share Print Page

You have not viewed any products recently.

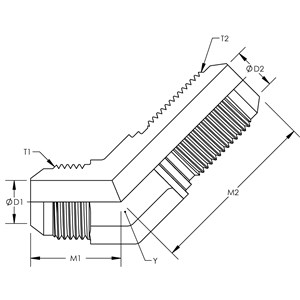

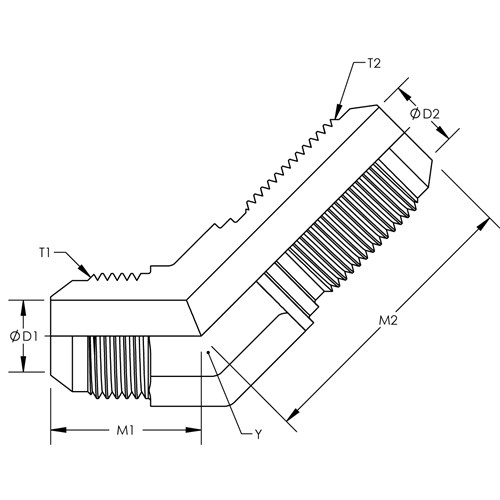

F5375d

Enlarge

F5375d

Attributes	Values
Product #	F5375
Gates	MJ-BKHD45
Aeroquip	2042-1
Parker	WNTX
AirWay	2702
SAE	070801
Stainless Part No	2702-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5375X04X04	0.438	7/16-20	0.720	0.172	7/16-20	1.530	0.172	Quote
F5375X05X05	0.563	1/2-20	0.770	0.234	1/2-20	1.660	0.234	Quote
F5375X06X06	0.563	9/16-18	0.830	0.297	9/16-18	1.670	0.297	Quote
F5375X08X06	0.750	3/4-16	0.980	0.391	9/16-18	1.830	0.297	Quote
F5375X08X08	0.750	3/4-16	0.980	0.391	3/4-16	1.940	0.391	Quote
F5375X10X10	0.875	7/8-14	1.110	0.484	7/8-14	2.170	0.484	Quote
F5375X12X12	1.063	1-1/16-12	1.280	0.609	1-1/16-12	2.440	0.609	Quote
F5375X16X16	1.313	1-5/16-12	1.470	0.844	1-5/16-12	2.560	0.844	Quote
F5375X20X20	1.625	1-5/8-12	1.590	1.078	1-5/8-12	2.650	1.078	Quote
