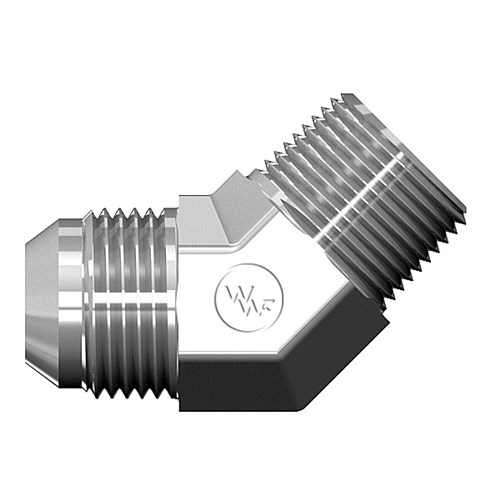

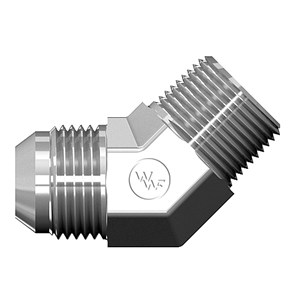

45° Male Elbow Stainless Steel

Share Print Page

You have not viewed any products recently.

F5355d

Enlarge

F5355d

Attributes	Values
Product #	2503SS
AirWay	2503SS
Material	Stainless Steel

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

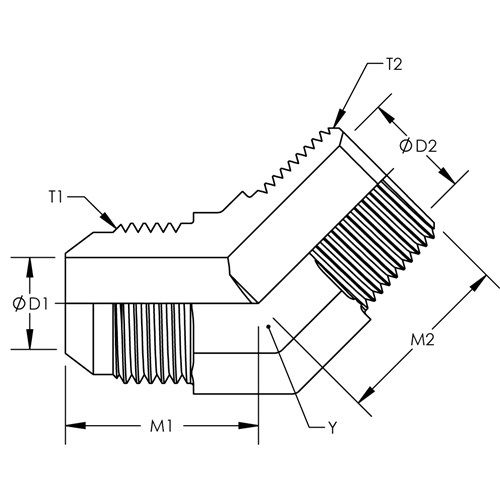

Part #	Y Hex	T1	M1	D1	T2	M2	D2
2503X04X02SS	0.438	7/16-20	0.720	0.172	1/8-27	0.640	0.188	Quote
2503X04X04SS	0.563	7/16-20	0.820	0.172	1/4-18	0.860	0.281	Quote
2503X06X04SS	0.563	9/16-18	0.830	0.297	1/4-18	0.860	0.281	Quote
2503X06X06SS	0.750	9/16-18	0.870	0.297	3/8-18	0.950	0.406	Quote
2503X08X06SS	0.750	3/4-16	0.980	0.391	3/8-18	0.950	0.406	Quote
2503X08X08SS	0.875	3/4-16	0.990	0.391	1/2-14	1.170	0.531	Quote
