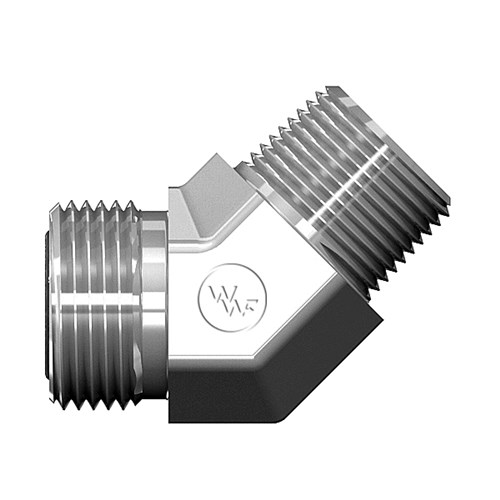

45° Male Elbow

Share Print Page

You have not viewed any products recently.

4355d

Enlarge

4355d

Attributes	Values
Product #	4355
Aeroquip	FF2093T
Parker	VLO
AirWay	FS2503

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

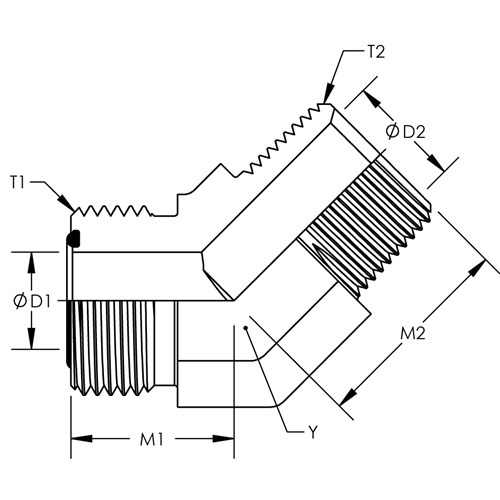

Part #	Y Hex	T1	M1	D1	T2	M2	D2
4355X04X04	0.563	9/16-18	0.630	0.177	1/4-18	0.860	0.281	Quote
4355X06X04	0.669	11/16-16	0.748	0.256	1/4-18	0.860	0.281	Quote
4355X06X08	0.875	11/16-16	0.748	0.256	1/2-14	1.170	0.531	Quote
4355X08X06	0.750	13/16-16	0.800	0.374	3/8-18	0.950	0.406	Quote
4355X08X08	0.875	13/16-16	0.860	0.374	1/2-14	1.170	0.531	Quote
4355X08X12	1.063	13/16-16	0.860	0.374	3/4-14	1.300	0.719	Quote
4355X10X08	1.063	1-14	0.925	0.492	1/2-14	1.170	0.531	Quote
4355X12X08	1.188	1-3/16-12	1.024	0.610	1/2-14	1.170	0.531	Quote
4355X12X12	1.188	1-3/16-12	1.024	0.610	3/4-14	1.300	0.719	Quote
4355X20X20	1.625	1-11/16-12	1.260	1.024	1-1/4-11-1/2	1.670	1.250	Quote
