Home>Products>Steel Flareless Fittings>45° Male Elbow

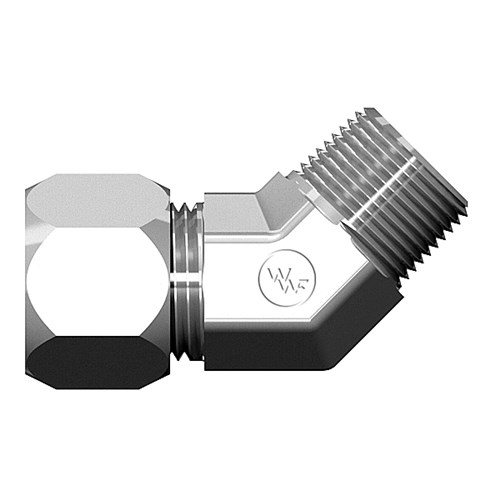

45° Male Elbow

Share Print Page

You have not viewed any products recently.

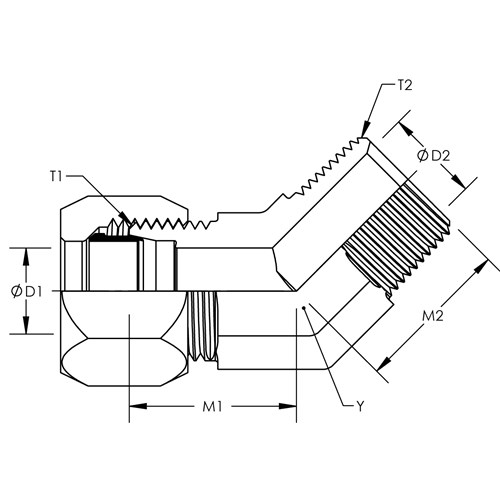

7355d

Enlarge

7355d

Attributes	Values
Product #	7355
Parker	VBU
AirWay	C2503
SAE	080302
Stainless Part No	C2503-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
7355X04X02	0.438	7/16-20	0.700	0.203	1/8-27	0.640	0.188	Quote
7355X04X04	0.563	7/16-20	0.810	0.203	1/4-18	0.860	0.281	Quote
7355X05X02	0.563	1/2-20	0.750	0.234	1/8-27	0.640	0.188	Quote
7355X06X04	0.563	9/16-18	0.830	0.281	1/4-18	0.860	0.281	Quote
7355X08X06	0.750	3/4-16	0.980	0.422	3/8-18	0.950	0.406	Quote
7355X08X08	0.875	3/4-16	1.010	0.422	1/2-14	1.170	0.531	Quote
7355X10X08	0.875	7/8-14	1.080	0.500	1/2-14	1.170	0.531	Quote
7355X12X12	1.063	1-1/16-12	1.270	0.656	3/4-14	1.200	0.719	Quote
