Steel Beaded Hose Barbs
>
45° Straight Thread Hose Fitting

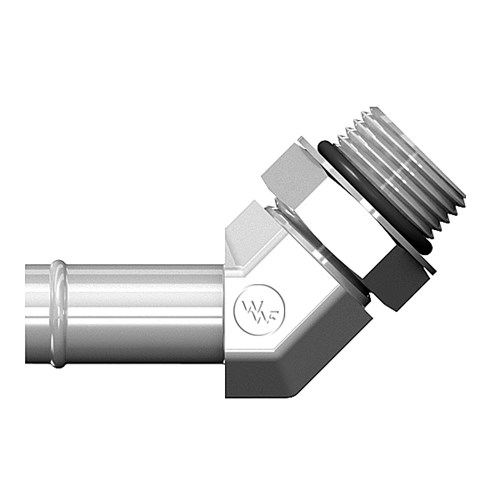

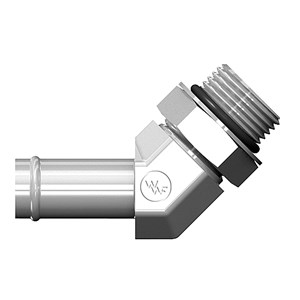

45° Straight Thread Hose Fitting
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
4603
AirWay
4603
SAE
430392
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

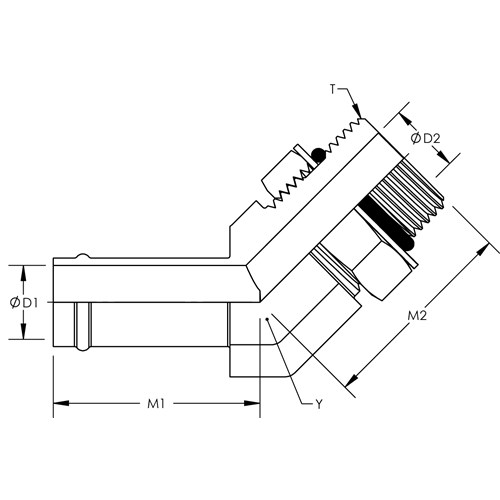

Part #
Y Hex
T
M1
D1
M2
D2
4603X04X06
0.625
9/16-18
1.700
0.188
1.141
0.297
Quote
4603X06X04
0.500
7/16-20
1.610
0.297
1.051
0.172
Quote
4603X06X06
0.625
9/16-18
1.690
0.297
1.141
0.297
Quote
4603X08X06
0.625
9/16-18
1.610
0.406
1.141
0.297
Quote
4603X08X08
0.813
3/4-16
1.690
0.406
1.299
0.391
Quote
4603X10X08
0.813
3/4-16
1.650
0.500
1.299
0.391
Quote
4603X10X10
0.938
7/8-14
1.700
0.500
1.519
0.484
Quote
4603X10X12
1.125
1-1/16-12
1.840
0.500
1.728
0.609
Quote
4603X12X12
1.125
1-1/16-12
1.750
0.625
1.728
0.609
Quote
4603X12X16
1.375
1-5/16-12
1.900
0.625
1.858
0.844
Quote
4603X16X12
1.125
1-1/16-12
1.700
0.844
1.728
0.609
Quote
4603X16X16
1.375
1-5/16-12
1.860
0.844
1.858
0.844
Quote
4603X20X20
1.688
1-5/8-12
1.920
1.094
1.909
1.078
Quote
4603X24X16
1.688
1-5/16-12
1.800
1.344
1.858
0.844
Quote
4603X24X24
2.000
1-7/8-12
1.970
1.344
1.909
1.310
Quote
