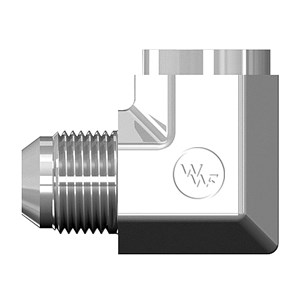

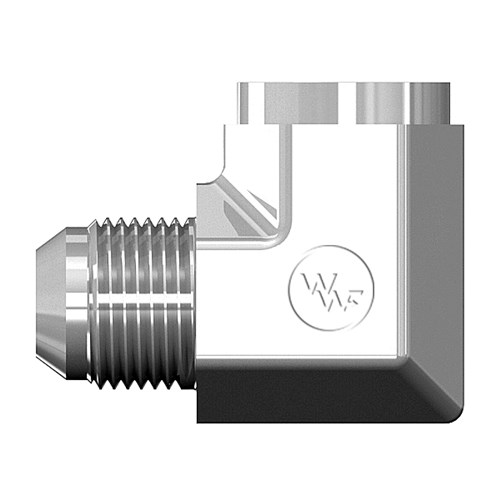

90° Female Elbow

Share Print Page

You have not viewed any products recently.

F5455d

Enlarge

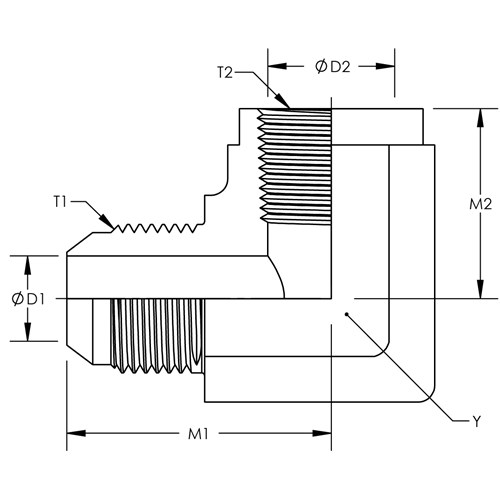

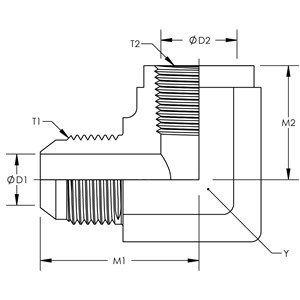

F5455d

Attributes	Values
Product #	F5455
Gates	MJ-FP90
Aeroquip	2025-[R]
Parker	DTX
AirWay	2502
SAE	070203
Stainless Part No	2502-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5455X02X02	0.563	5/16-24	1.000	0.063	1/8-27	0.660	0.332	Quote
F5455X03X02	0.563	3/8-24	1.030	0.125	1/8-27	0.660	0.332	Quote
F5455X04X02	0.563	7/16-20	1.080	0.172	1/8-27	0.660	0.332	Quote
F5455X04X04	0.750	7/16-20	1.220	0.172	1/4-18	0.880	0.438	Quote
F5455X04X06	0.875	7/16-20	1.290	0.172	3/8-18	1.020	0.563	Quote
F5455X04X08	1.063	7/16-20	1.400	0.172	1/2-14	1.230	0.703	Quote
F5455X05X02	0.563	1/2-20	1.080	0.234	1/8-27	0.660	0.332	Quote
F5455X05X04	0.750	1/2-20	1.220	0.234	1/4-18	0.880	0.438	Quote
F5455X05X06	0.875	1/2-20	1.290	0.234	3/8-18	1.020	0.563	Quote
F5455X06X02	0.563	9/16-18	1.230	0.297	1/8-27	0.670	0.332	Quote
F5455X06X04	0.750	9/16-18	1.230	0.297	1/4-18	0.880	0.438	Quote
F5455X06X06	0.875	9/16-18	1.310	0.297	3/8-18	1.020	0.563	Quote
F5455X06X08	1.063	9/16-18	1.410	0.297	1/2-14	1.230	0.703	Quote
F5455X08X04	0.875	3/4-16	1.420	0.391	1/4-18	1.010	0.438	Quote
F5455X08X06	0.875	3/4-16	1.420	0.391	3/8-18	1.020	0.563	Quote
F5455X08X08	1.063	3/4-16	1.520	0.391	1/2-14	1.230	0.703	Quote
F5455X08X12	1.313	3/4-16	1.650	0.391	3/4-14	1.360	0.906	Quote
F5455X10X06	1.063	7/8-14	1.640	0.484	3/8-18	1.010	0.563	Quote
F5455X10X08	1.063	7/8-14	1.640	0.484	1/2-14	1.230	0.703	Quote
F5455X10X12	1.313	7/8-14	1.770	0.484	3/4-14	1.360	0.906	Quote
F5455X12X08	1.313	1-1/16-12	1.890	0.609	1/2-14	1.350	0.703	Quote
F5455X12X12	1.313	1-1/16-12	1.890	0.609	3/4-14	1.360	0.906	Quote
F5455X12X16	1.625	1-1/16-12	2.120	0.609	1-11-1/2	1.620	1.141	Quote
F5455X14X12	1.313	1-3/16-12	1.860	0.719	3/4-14	1.420	0.906	Quote
F5455X16X12	1.313	1-5/16-12	2.170	0.844	3/4-14	1.390	0.906	Quote
F5455X16X16	1.625	1-5/16-12	2.170	0.844	1-11-1/2	1.620	1.141	Quote
F5455X16X20	1.875	1-5/16-12	2.280	0.844	1-1/4-11-1/2	1.700	1.484	Quote
F5455X20X20	1.875	1-5/8-12	2.330	1.078	1-1/4-11-1/2	1.700	1.484	Quote
F5455X24X24	2.562	1-7/8-12	2.890	1.313	1-1/2-11-1/2	2.080	1.744	Quote
F5455X32X32	2.812	2-1/2-12	3.300	1.781	2-11-1/2	2.390	2.213	Quote
