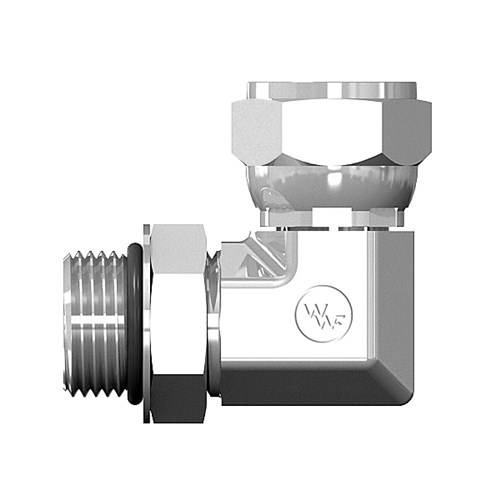

90° Female Swivel to Male ORB

Share Print Page

You have not viewed any products recently.

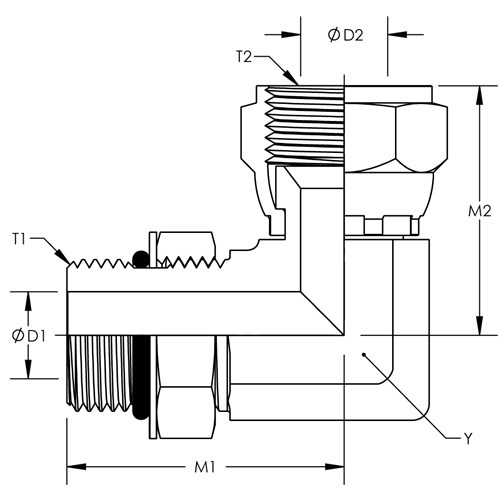

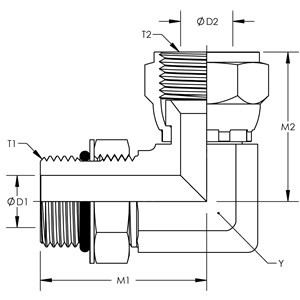

6809d

Enlarge

6809d

Attributes	Values
Product #	6809
Parker	AOEX6
AirWay	6809
Stainless Part No	6809-SS

3D Renderings

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
6809X04X04	0.438	7/16-20	1.030	0.172	7/16-20	1.000	0.172	Quote
6809X06X06	0.563	9/16-18	1.250	0.297	9/16-18	1.250	0.297	Quote
6809X08X08	0.750	3/4-16	1.450	0.391	3/4-16	1.380	0.391	Quote
6809X12X12	1.063	1-1/16-12	1.940	0.609	1-1/16-12	1.750	0.609	Quote
6809X16X16	1.313	1-5/16-12	2.050	0.844	1-5/16-12	2.000	0.844	Quote
