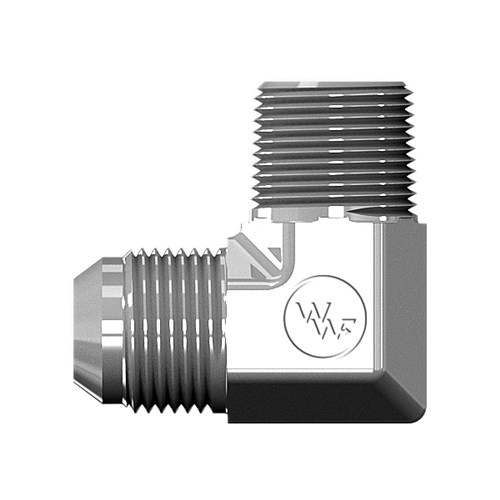

Male JIC To Male BSPT 90° Elbow

Share Print Page

You have not viewed any products recently.

7200d

Enlarge

7200d

Attributes	Values
Product #	7200
Parker	C3MX
AirWay	7200

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

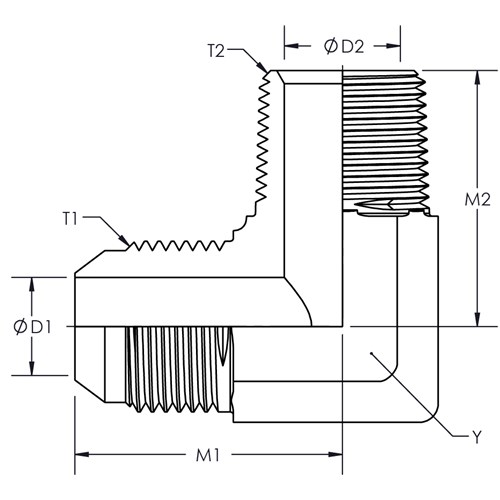

Part #	Y Hex	T1	M1	D1	T2	M2	D2
7200X04X02	0.438	7/16-20	0.890	0.172	1/8-28	0.780	0.188	Quote
7200X04X04	0.563	7/16-20	1.050	0.172	1/4-19	1.090	0.276	Quote
7200X06X04	0.563	9/16-18	1.060	0.297	1/4-19	1.090	0.276	Quote
7200X06X06	0.748	9/16-18	1.142	0.297	3/8-19	1.220	0.406	Quote
7200X08X06	0.748	3/4-16	1.252	0.391	3/8-19	1.220	0.406	Quote
7200X08X08	0.875	3/4-16	1.330	0.391	1/2-14	1.469	0.531	Quote
7200X12X12	1.063	1-1/16-12	1.660	0.609	3/4-14	1.590	0.719	Quote
