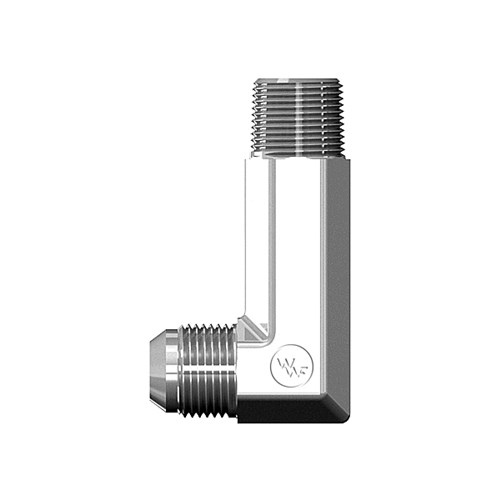

90° Male Extra Long Elbow

Share Print Page

You have not viewed any products recently.

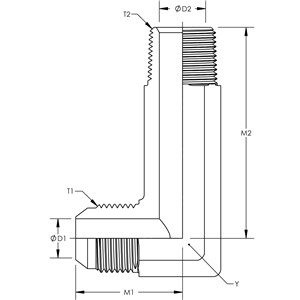

F5435d

Enlarge

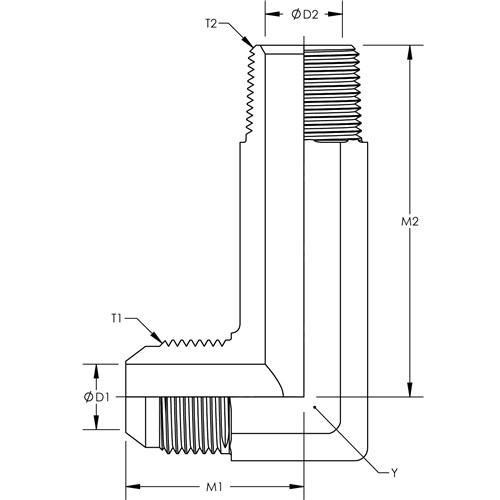

F5435d

Attributes	Values
Product #	F5435
Aeroquip	202413-[R]
Parker	CCCTX
AirWay	2501-LL
SAE	071602
Stainless Part No	2501-LL-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5435X04X02	0.438	7/16-20	0.890	0.172	1/8-27	1.560	0.188	Quote
F5435X04X04	0.563	7/16-20	1.050	0.172	1/4-18	2.070	0.281	Quote
F5435X05X02	0.563	1/2-20	0.950	0.234	1/8-27	1.630	0.188	Quote
F5435X05X04	0.563	1/2-20	1.050	0.234	1/4-18	2.070	0.281	Quote
F5435X06X04	0.563	9/16-18	1.060	0.297	1/4-18	2.070	0.281	Quote
F5435X06X06	0.750	9/16-18	1.140	0.297	3/8-18	2.420	0.406	Quote
F5435X06X08	0.875	9/16-18	1.220	0.297	1/2-14	2.870	0.531	Quote
F5435X08X06	0.750	3/4-16	1.250	0.391	3/8-18	2.420	0.406	Quote
F5435X08X08	0.875	3/4-16	1.330	0.391	1/2-14	2.870	0.531	Quote
F5435X10X08	0.875	7/8-14	1.450	0.484	1/2-14	2.870	0.531	Quote
F5435X12X08	1.063	1-1/16-12	1.660	0.609	1/2-14	3.280	0.531	Quote
F5435X12X12	1.063	1-1/16-12	1.660	0.609	3/4-14	3.280	0.719	Quote
F5435X14X12	1.313	1-3/16-12	1.800	0.719	3/4-14	3.500	0.719	Quote
F5435X16X16	1.313	1-5/16-12	1.810	0.844	1-11-1/2	4.050	0.938	Quote
F5435X20X20	1.625	1-5/8-12	2.060	1.078	1-1/4-11-1/2	5.000	1.250	Quote
