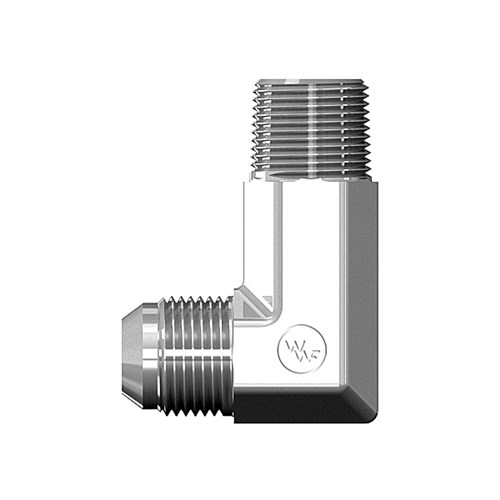

90° Male Long Elbow

Share Print Page

You have not viewed any products recently.

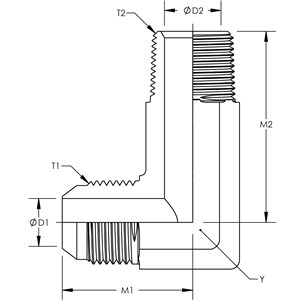

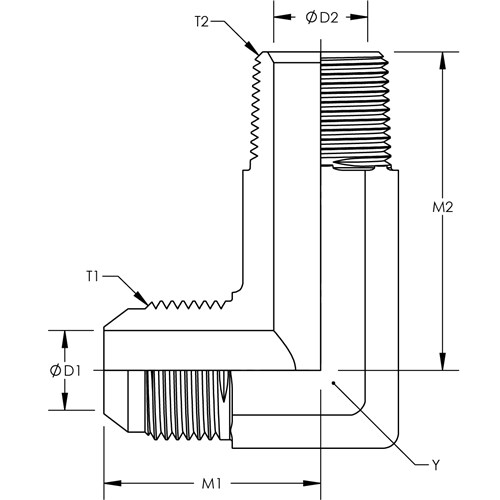

F5425d

Enlarge

F5425d

Attributes	Values
Product #	F5425
Aeroquip	202411-[R]
Parker	CCTX
AirWay	2501-L
SAE	071502
Stainless Part No	2501-L-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5425X04X02	0.438	7/16-20	0.890	0.172	1/8-27	1.170	0.188	Quote
F5425X04X04	0.563	7/16-20	1.050	0.172	1/4-18	1.580	0.281	Quote
F5425X05X04	0.563	1/2-20	1.050	0.234	1/4-18	1.580	0.281	Quote
F5425X06X04	0.563	9/16-18	1.060	0.297	1/4-18	1.580	0.281	Quote
F5425X06X06	0.750	9/16-18	1.140	0.297	3/8-18	1.820	0.406	Quote
F5425X06X08	0.875	9/16-18	1.220	0.297	1/2-14	2.170	0.531	Quote
F5425X08X06	0.750	3/4-16	1.250	0.391	3/8-18	1.820	0.406	Quote
F5425X08X08	0.875	3/4-16	1.330	0.391	1/2-14	2.170	0.531	Quote
F5425X08X12	1.063	3/4-16	1.420	0.391	3/4-14	2.440	0.719	Quote
F5425X10X08	0.875	7/8-14	1.450	0.484	1/2-14	2.170	0.531	Quote
F5425X12X12	1.063	1-1/16-12	1.660	0.609	3/4-14	2.440	0.719	Quote
F5425X14X12	1.313	1-3/16-12	1.800	0.719	3/4-14	2.590	0.719	Quote
F5425X16X16	1.313	1-5/16-12	1.810	0.844	1-11-1/2	3.010	0.938	Quote
F5425X20X20	1.625	1-5/8-12	2.060	1.078	1-1/4-11-1/2	3.690	1.250	Quote
F5425X24X24	1.875	1-7/8-12	2.330	1.313	1-1/2-11-1/2	4.100	1.500	Quote
