Home>Products>Steel 37 Flare (JIC) Fittings>90° Straight Thread Elbow Long

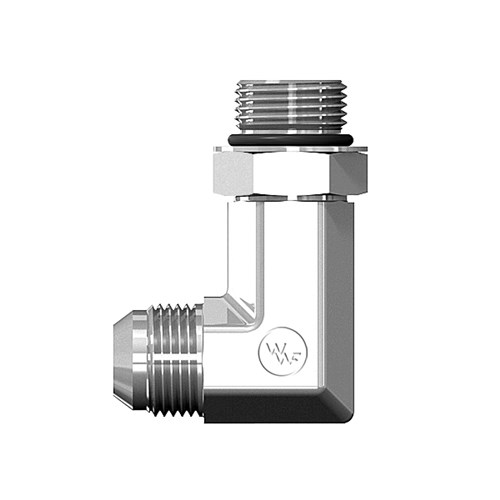

90° Straight Thread Elbow Long

Share Print Page

You have not viewed any products recently.

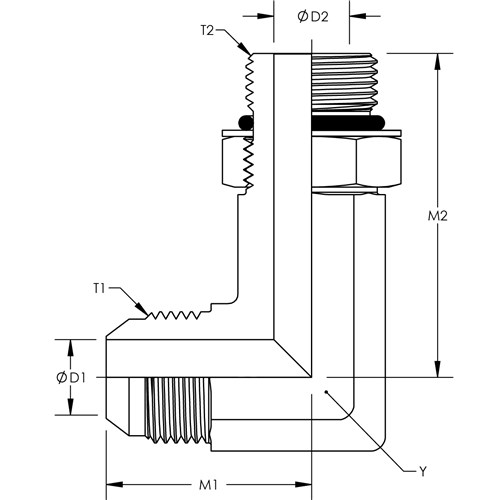

F5515Ld

Enlarge

F5515Ld

Attributes	Values
Product #	F5515L
Parker	CC5OX
AirWay	6801-L
SAE	071520
Stainless Part No	6801-L-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F5515X04X04L	0.438	7/16-20	0.890	0.172	7/16-20	1.540	0.172	Quote
F5515X04X06L	0.563	7/16-20	1.050	0.172	9/16-18	1.660	0.297	Quote
F5515X06X06L	0.563	9/16-18	1.060	0.297	9/16-18	1.660	0.297	Quote
F5515X06X08L	0.750	9/16-18	1.140	0.297	3/4-16	1.970	0.391	Quote
F5515X08X08L	0.750	3/4-16	1.250	0.391	3/4-16	1.970	0.391	Quote
F5515X10X08L	0.875	7/8-14	1.450	0.484	3/4-16	2.100	0.391	Quote
F5515X10X10L	0.875	7/8-14	1.450	0.484	7/8-14	2.260	0.484	Quote
F5515X12X12L	1.063	1-1/16-12	1.660	0.609	1-1/16-12	2.620	0.609	Quote
F5515X16X16L	1.313	1- 5/16-12	1.810	0.844	1-5/16-12	3.060	0.844	Quote
