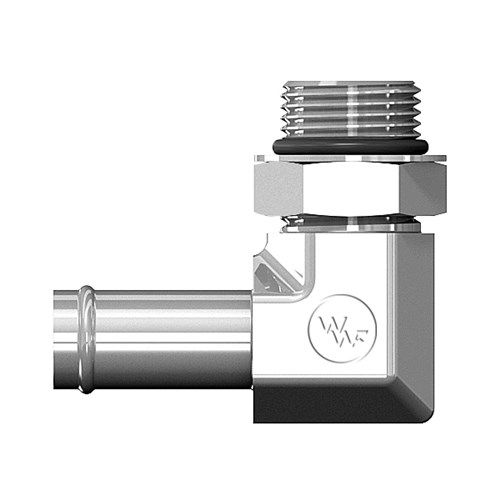

90° Straight Thread Hose Fitting

You have not viewed any products recently.

Enlarge

These values are for reference only. Availability is not guaranteed.

ENGLISH

METRIC

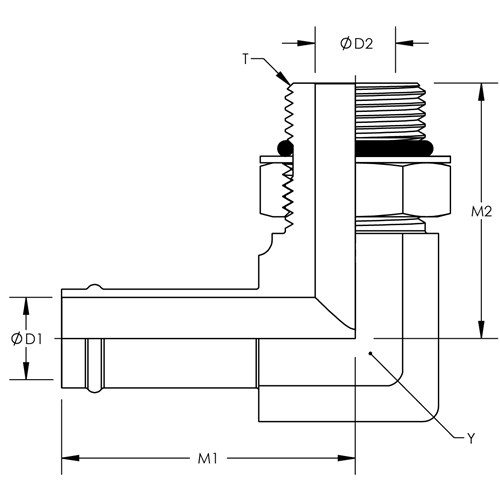

Part #	Y Hex	T	M1	D1	M2	D2
4601X04X04	0.500	7/16-20	1.752	0.188	1.031	0.172	Quote
4601X06X04	0.500	7/16-20	1.887	0.296	1.192	0.172	Quote
4601X06X06	0.625	9/16-18	1.812	0.296	1.251	0.297	Quote
4601X06X08	0.813	3/4-16	2.057	0.296	1.448	0.391	Quote
4601X08X06	0.625	9/16-18	1.955	0.406	1.251	0.297	Quote
4601X08X08	0.813	3/4-16	2.057	0.406	1.448	0.391	Quote
4601X08X10	0.938	7/8-14	2.125	0.406	1.700	0.484	Quote
4601X10XM14	0.875	M14X1.5	1.969	0.500	1.693	0.295	Quote
4601X10X08	0.813	3/4-16	2.057	0.500	1.448	0.391	Quote
4601X10X10	0.938	7/8-14	2.125	0.500	1.700	0.484	Quote
4601X10X12	1.125	1-1/16-12	2.228	0.500	1.940	0.609	Quote
4601X12X08	0.938	3/4-16	2.125	0.625	1.448	0.391	Quote
4601X12X10	0.938	7/8-14	2.125	0.625	1.700	0.484	Quote
4601X12X12	1.125	1-1/16-12	2.228	0.625	1.940	0.609	Quote
4601X12X16	1.375	1-5/16-12	2.364	0.625	2.051	0.844	Quote
4601X16X10	1.125	7/8-14	2.228	0.844	1.889	0.484	Quote
4601X16X12	1.125	1-1/16-12	2.228	0.844	1.940	0.609	Quote
4601X16X16	1.375	1-5/16-12	2.364	0.844	2.051	0.844	Quote
4601X20X16	1.375	1-5/16-12	2.364	1.094	2.051	0.844	Quote
4601X20X20	1.688	1-5/8-12	2.535	1.094	2.251	1.078	Quote
4601X24X20	1.688	1-5/8-12	2.535	1.344	2.251	1.078	Quote
