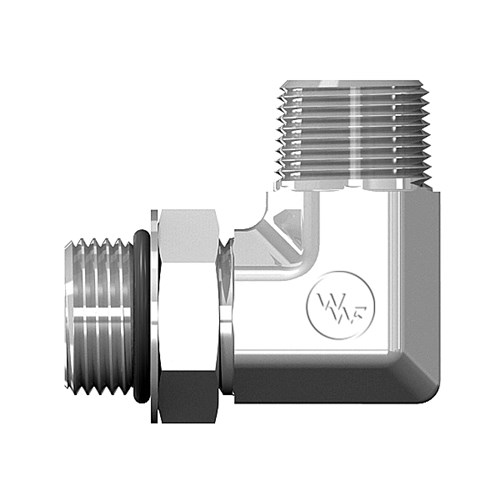

90° Straight Thread Male to Male Pipe Elbow

Share Print Page

You have not viewed any products recently.

F3569d

Enlarge

F3569d

Attributes	Values
Product #	F3569
AirWay	6806
Stainless Part No	6806-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

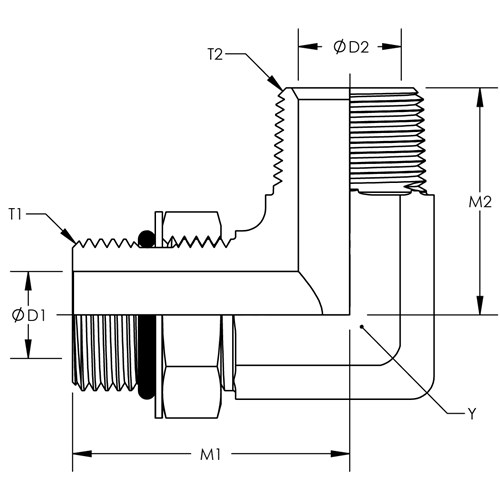

Part #	Y Hex	T1	M1	D1	T2	M2	D2
F3569X04X02	0.438	7/16-20	1.030	0.172	1/8-27	0.780	0.188	Quote
F3569X04X04	0.563	7/16-20	1.190	0.234	1/4-18	1.090	0.281	Quote
F3569X05X02	0.563	1/2-20	1.130	0.234	1/8-27	0.780	0.188	Quote
F3569X06X04	0.563	9/16-18	1.250	0.297	1/4-18	1.090	0.281	Quote
F3569X06X06	0.750	9/16-18	1.320	0.297	3/8-18	1.090	0.281	Quote
F3569X08X06	0.750	3/4-16	1.450	0.391	3/8-18	1.220	0.406	Quote
F3569X08X08	0.875	3/4-16	1.540	0.391	1/2-14	1.470	0.531	Quote
F3569X10X08	0.875	7/8-14	1.700	0.484	1/2-14	1.470	0.531	Quote
F3569X12X12	1.063	1-1/16-12	1.940	0.609	3/4-14	1.590	0.719	Quote
F3569X14X12	1.313	1-3/16-12	2.000	0.719	3/4-14	1.690	0.719	Quote
F3569X16X12	1.313	1-5/16-12	2.050	0.844	3/4-14	1.780	0.719	Quote
F3569X16X16	1.313	1-5/16-12	2.050	0.844	1-11-1/2	1.970	0.938	Quote
F3569X20X20	1.625	1-5/8-12	2.250	1.078	1-1/4-11-1/2	2.380	1.250	Quote
F3569X24X24	1.875	1-7/8-12	2.390	1.313	1-1/2-11-1/2	2.640	1.500	Quote
