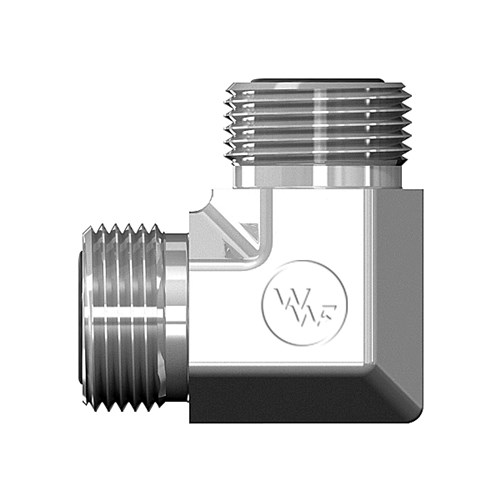

90° Union Elbow

Share Print Page

You have not viewed any products recently.

4505d

Enlarge

4505d

Attributes	Values
Product #	4505
Aeroquip	FF2035T
Parker	ELO
AirWay	FS2500
SAE	520201

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

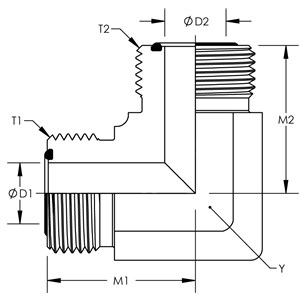

Part #	Y Hex	T1	M1	D1	T2	M2	D2
4505X04X04	0.563	9/16-18	0.846	0.177	9/16-18	0.846	0.177	Quote
4505X06X04	0.669	11/16-16	0.984	0.256	9/16-18	0.925	0.177	Quote
4505X06X06	0.669	11/16-16	0.984	0.256	11/16-16	0.984	0.256	Quote
4505X08X08	0.750	13/16-16	1.102	0.374	13/16-16	1.102	0.374	Quote
4505X10X10	1.063	1-14	1.319	0.492	1-14	1.319	0.492	Quote
4505X12X08	1.188	1-3/16-12	1.476	0.610	13/16-16	1.338	0.374	Quote
4505X12X12	1.188	1-3/16-12	1.476	0.610	1-3/16-12	1.476	0.610	Quote
4505X16X16	1.438	1-7/16-12	1.634	0.807	1-7/16-12	1.634	0.807	Quote
4505X20X20	1.625	1-11/16-12	1.752	1.024	1-11/16-12	1.752	1.024	Quote
4505X24X24	1.875	2-12	1.929	1.260	2-12	1.929	1.260	Quote
