Steel 37 Flare (JIC) Fittings
>

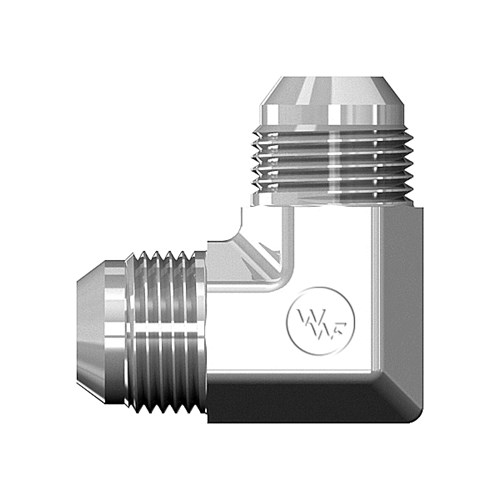

90° Union Elbow
90° Union Elbow
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
F5505
Aeroquip
2039
Parker
ETX
AirWay
2500
SAE
070201
Stainless Part No
2500-SS
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

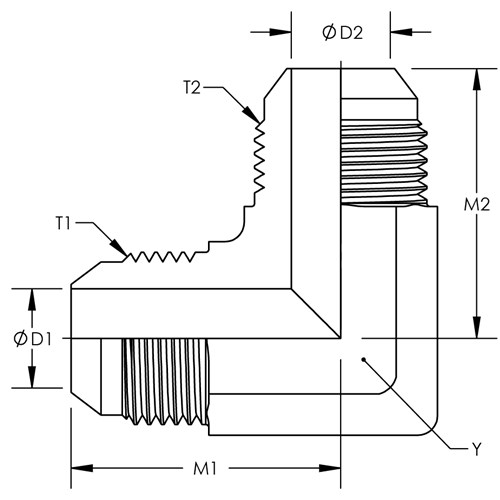

Part #
Y Hex
T1
M1
D1
T2
M2
D2
F5505X02X02
0.438
5/16-24
0.770
0.063
5/16-24
0.770
0.063
Quote
F5505X03X03
0.438
3/8-24
0.830
0.125
3/8-24
0.830
0.125
Quote
F5505X04X04
0.438
7/16-20
0.890
0.172
7/16-20
0.890
0.172
Quote
F5505X05X05
0.563
1/2-20
0.950
0.234
1/2-20
0.950
0.234
Quote
F5505X06X04
0.563
9/16-18
1.060
0.297
7/16-20
1.050
0.172
Quote
F5505X06X05
0.563
9/16-18
1.060
0.297
1/2 -20
1.050
0.234
Quote
F5505X06X06
0.563
9/16-18
1.060
0.297
9/16-18
1.060
0.297
Quote
F5505X08X04
0.750
3/4-16
1.250
0.391
7/16-20
1.120
0.172
Quote
F5505X08X06
0.750
3/4-16
1.250
0.391
9/16-18
1.140
0.297
Quote
F5505X08X08
0.750
3/4-16
1.250
0.391
3/4-16
1.250
0.391
Quote
F5505X10X08
0.875
7/8-14
1.450
0.484
3/4-16
1.330
0.391
Quote
F5505X10X10
0.875
7/8-14
1.450
0.484
7/8-14
1.450
0.484
Quote
F5505X12X08
1.063
1-1/16-12
1.660
0.609
3/4-16
1.420
0.391
Quote
F5505X12X10
1.063
1-1/16-12
1.660
0.609
7/8-14
1.540
0.484
Quote
F5505X12X12
1.063
1-1/16-12
1.660
0.609
1-1/16-12
1.660
0.609
Quote
F5505X14X14
1.313
1-3/16-12
1.800
0.719
1-3/16-12
1.800
0.719
Quote
F5505X16X12
1.313
1-5-16-12
1.810
0.844
1-1/16-12
1.760
0.609
Quote
F5505X16X16
1.313
1-5/16-12
1.810
0.844
1-5/16-12
1.810
0.844
Quote
F5505X20X20
1.625
1-5/8-12
2.060
1.078
1-5/8-12
2.060
1.078
Quote
F5505X24X24
1.875
1-7/8-12
2.330
1.313
1-7/8-12
2.330
1.313
Quote
F5505X32X32
2.500
2-1/2-12
3.060
1.781
2-1/2-12
3.060
1.781
Quote
