Home>Products>Steel O Ring Face Seal Fittings>Adjustable Stud Run Tee

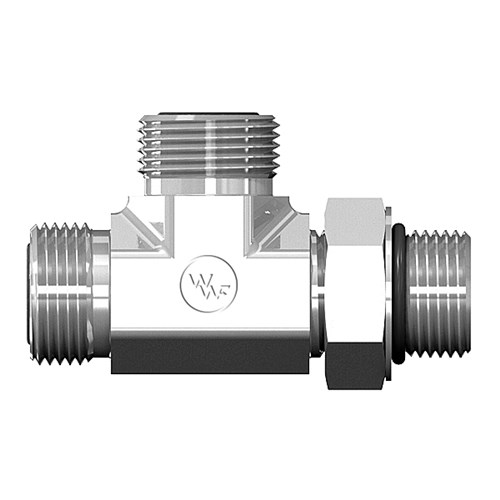

Adjustable Stud Run Tee

Share Print Page

You have not viewed any products recently.

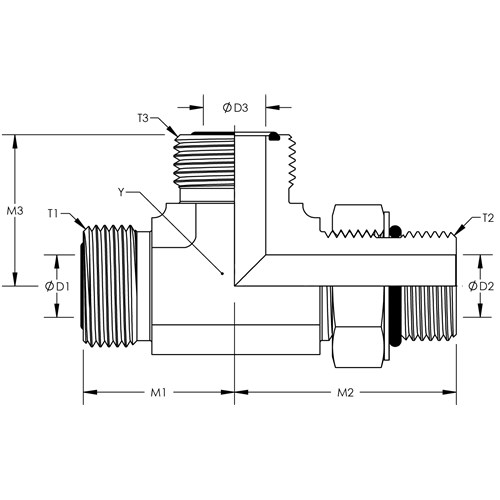

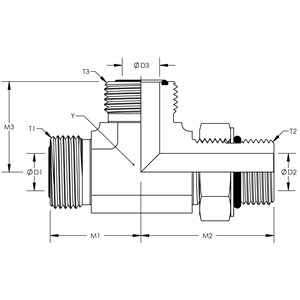

4716d

Enlarge

4716d

Attributes	Values
Product #	4716
Gates	MFFOR-MB-MFFOR
Aeroquip	FF1865T
Parker	R5OLO
AirWay	FS6804
SAE	520428

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4716x16x12x16	1.438	1-7/16-12	1.634	0.807	1-1/16-12	2.303	0.610	1-7/16-12	1.634	0.807	Quote
4716X04X04X04	0.563	9/16-18	0.846	0.177	7/16-20	1.299	0.177	9/16-18	0.846	0.177	Quote
4716X04X04X06	0.669	9/16-18	0.925	0.177	7/16-20	1.378	0.177	11/16-16	0.984	0.256	Quote
4716X04X06X04	0.669	9/16-18	0.925	0.177	9/16-18	1.457	0.295	9/16-18	0.925	0.177	Quote
4716X06X04X06	0.669	11/16-16	0.984	0.256	7/16-20	1.378	0.177	11/16-16	0.984	0.256	Quote
4716X06X06X06	0.669	11/16-16	0.984	0.256	9/16-18	1.457	0.295	11/16-16	0.984	0.256	Quote
4716X08X06X08	0.750	13/16-16	1.102	0.374	9/16-18	1.438	0.295	13/16-16	1.102	0.374	Quote
4716X08X08X08	0.750	13/16-16	1.102	0.374	3/4-16	1.594	0.394	13/16-16	1.102	0.374	Quote
4716X08X08X12	1.188	13/16-16	1.338	0.374	3/4-16	1.831	0.394	1-3/16-12	1.476	0.610	Quote
4716X08X10X08	1.063	13/16-16	1.240	0.374	7/8-14	1.969	0.492	13/16-16	1.240	0.374	Quote
4716X08X16X08	1.438	13/16-16	1.476	0.374	1-5/16-12	2.342	0.846	13/16-16	1.476	0.374	Quote
4716X10X10X08	1.063	1-14	1.319	0.492	7/8-14	1.969	0.492	13/16-16	1.240	0.374	Quote
4716X10X10X10	1.063	1-14	1.319	0.492	7/8-14	1.969	0.492	1-14	1.319	0.492	Quote
4716X12X12X12	1.188	1-3/16-12	1.476	0.610	1-1/16-12	2.165	0.610	1-3/16-12	1.476	0.610	Quote
4716X12X12X16	1.438	1-3/16-12	1.614	0.610	1-1/16-12	2.303	0.610	1-7/16-12	1.634	0.807	Quote
4716X12X16X12	1.438	1-3/16-12	1.614	0.610	1-5/16-12	2.342	0.846	1-3/16-12	1.614	0.610	Quote
4716X12X16X16	1.438	1-3/16-12	1.614	0.610	1-5/16-12	2.342	0.846	1-7/16-12	1.634	0.807	Quote
4716X16X16X12	1.438	1-7/16-12	1.634	0.807	1-5/16-12	2.342	0.846	1-3/16-12	1.614	0.610	Quote
4716X16X16X16	1.438	1-7/16-12	1.634	0.807	1-5/16-12	2.342	0.846	1-7/16-12	1.634	0.807	Quote
4716X16X16X20	1.625	1-7/16-12	1.752	0.807	1-5/16-12	2.441	0.846	1-11/16-12	1.752	1.024	Quote
4716X20X20X20	1.625	1-11/16-12	1.752	1.024	1-5/8-12	2.441	1.083	1-11/16-12	1.752	1.024	Quote
