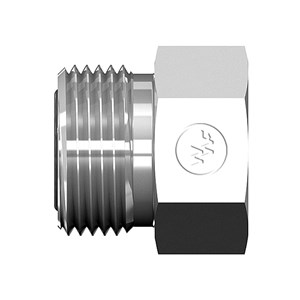

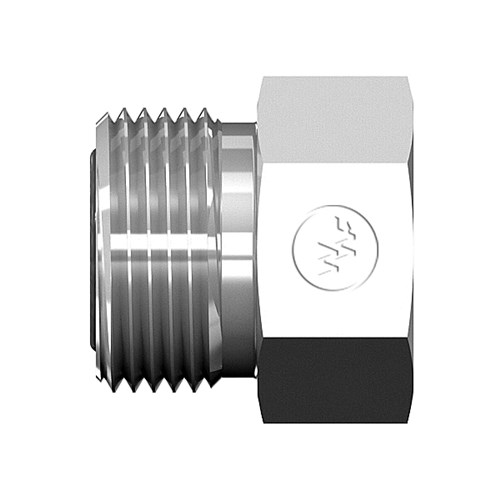

Braze-On Straight

You have not viewed any products recently.

Enlarge

These values are for reference only. Availability is not guaranteed.

ENGLISH

METRIC

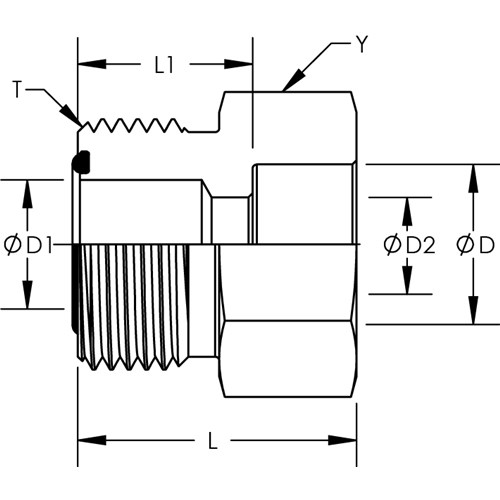

Part #	Y Hex	T	D	D1	D2	L	L1
4315X04X04	0.625	9/16-18	0.256	0.177	0.177	0.866	0.531	Quote
4315X06X04	0.750	11/16-16	0.256	0.177	0.177	0.905	0.571	Quote
4315X04X05	0.625	9/16-18	0.318	0.177	0.177	0.866	0.531	Quote
4315X04X06	0.625	9/16-18	0.381	0.177	0.177	0.866	0.531	Quote
4315X06X06	0.750	11/16-16	0.381	0.256	0.256	0.905	0.571	Quote
4315X08X06	0.875	13/16-16	0.381	0.256	0.256	0.964	0.630	Quote
4315X06X08	0.750	11/16-16	0.506	0.256	0.256	0.905	0.571	Quote
4315X08X08	0.875	13/16-16	0.506	0.374	0.374	0.964	0.630	Quote
4315X08X10	0.875	13/16-16	0.631	0.374	0.374	0.964	0.630	Quote
4315X10X10	1.063	1-14	0.631	0.492	0.492	1.102	0.748	Quote
4315X12X10	1.250	1-3/16-12	0.631	0.610	0.492	1.181	0.827	Quote
4315X08X12	1.063	13/16-16	0.757	0.374	0.374	1.130	0.630	Quote
4315X10X12	1.063	1-14	0.757	0.492	0.492	1.240	0.748	Quote
4315X12X12	1.250	1-3/16-12	0.757	0.610	0.610	1.319	0.827	Quote
4315X16X12	1.500	1-7/16-12	0.757	0.807	0.610	1.457	0.964	Quote
4315X12X14	1.375	1-3/16-12	0.882	0.610	0.610	1.322	0.827	Quote
4315X12X16	1.250	1-3/16-12	1.007	0.610	0.610	1.378	0.827	Quote
4315X16X16	1.500	1-7/16-12	1.007	0.807	0.807	1.516	0.964	Quote
4315X16X20	1.750	1-7/16-12	1.258	0.807	0.807	1.516	0.964	Quote
4315X20X20	1.750	1-11/16-12	1.258	1.024	1.024	1.516	0.964	Quote
4315X24X24	2.125	2-12	1.508	1.260	1.260	1.516	0.964	Quote
