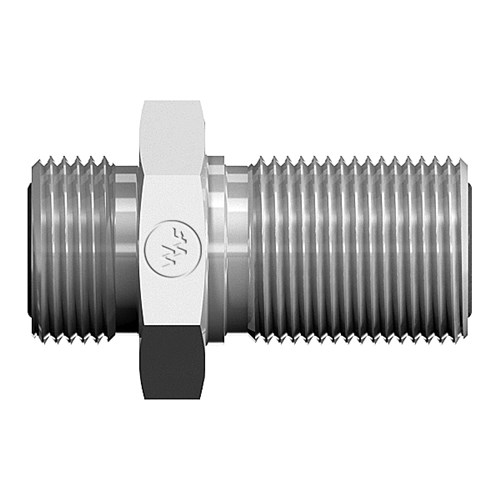

Bulkhead Straight Metric Hex

Share Print Page

You have not viewed any products recently.

4325MHd

Enlarge

4325MHd

Attributes	Values
Product #	4325MH
Parker	WMLO
AirWay	FS2700-H

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

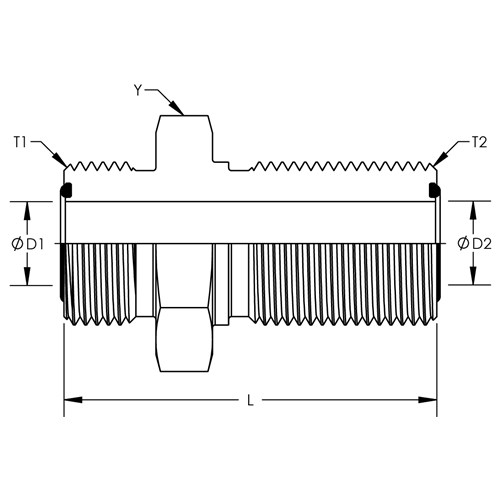

Part #	Y Hex	T1	D1	T2	D2	L
4325X04X04MH	0.866	9/16-18	0.177	9/16-18	0.177	1.890	Quote
4325X06X06MH	1.063	11/16-16	0.256	11/16-16	0.256	2.087	Quote
4325X08X08MH	1.181	13/16-16	0.374	13/16-16	0.374	2.303	Quote
4325X10X10MH	1.417	1-14	0.492	1-14	0.492	2.618	Quote
4325X12X12MH	1.614	1-3/16-12	0.610	1-3/16-12	0.610	2.716	Quote
4325X16X16MH	1.811	1-7/16-12	0.807	1-7/16-12	0.807	2.756	Quote
4325X20X20MH	1.969	1-11/16-12	1.024	1-11/16-12	1.024	2.756	Quote
