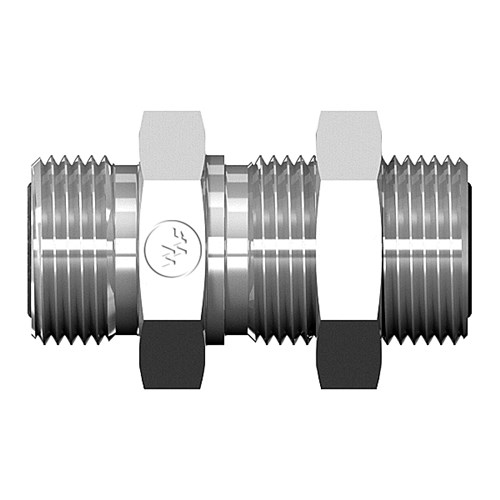

Bulkhead Straight with Locknut

Share Print Page

You have not viewed any products recently.

4325LNd

Enlarge

4325LNd

Attributes	Values
Product #	4325LN
Aeroquip	FF1994T
Parker	WLO-WLNL
AirWay	FS2700-LN
SAE	520601

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

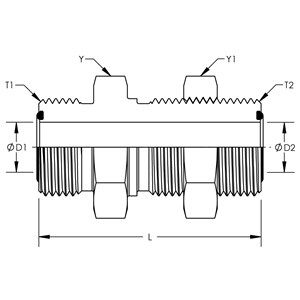

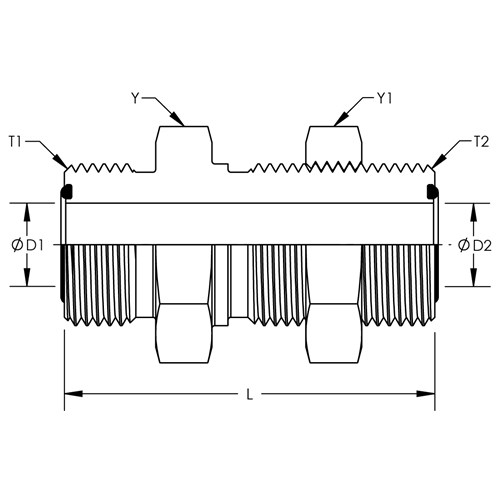

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	L
4325X04X04LN	0.813	0.813	9/16-18	0.177	9/16-18	0.177	1.890	Quote
4325X06X06LN	1.000	1.000	11/16-16	0.256	11/16-16	0.256	2.087	Quote
4325X08X08LN	1.125	1.125	13/16-16	0.374	13/16-16	0.374	2.303	Quote
4325X10X10LN	1.313	1.313	1-14	0.492	1-14	0.492	2.618	Quote
4325X12X12LN	1.500	1.500	1-3/16-12	0.610	1-3/16-12	0.610	2.716	Quote
4325X16X16LN	1.750	1.750	1-7/16-12	0.807	1-7/16-12	0.807	2.756	Quote
4325X20X20LN	2.000	2.000	1-11/16-12	1.024	1-11/16-12	1.024	2.756	Quote
4325X24X24LN	2.375	2.375	2-12	1.260	2-12	1.260	2.756	Quote
