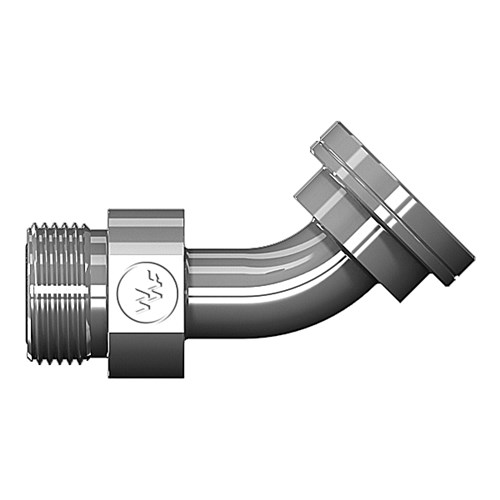

Face Seal Flange 45° Elbow Short Code – 62

Share Print Page

You have not viewed any products recently.

FS1803

Enlarge

FS1803

Attributes	Values
Product #	FS1803
AirWay	FS1803

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

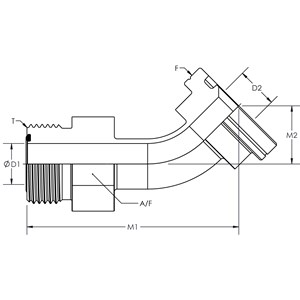

Part #	Y Hex	T	M1	D1	M2	D2	F
FS1803X12X12	1.250	1-3/16-12	3.150	0.610	0.866	0.610	1.626	Quote
FS1803X16X16	1.500	1-7/16-12	4.331	0.807	1.102	0.807	1.876	Quote
FS1803X20X20	1.750	1-11/16-12	4.921	1.024	1.260	1.024	2.126	Quote
FS1803X24X24	2.125	2-12	5.709	1.260	1.496	1.260	2.500	Quote
