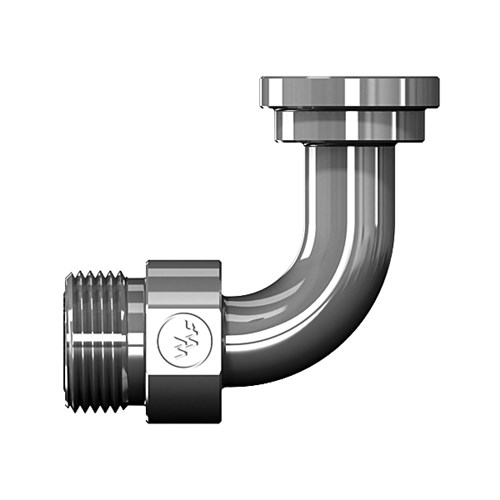

Face Seal Flange 90° Elbow Short Code – 61

Share Print Page

You have not viewed any products recently.

FS1704

Enlarge

FS1704

Attributes	Values
Product #	FS1704
AirWay	FS1704

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

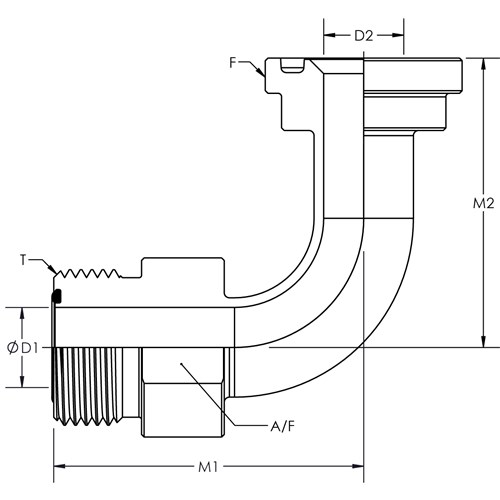

Part #	Y Hex	T	M1	D1	M2	D2	F
FS1704X12X12	1.250	1-3/16-12	2.362	0.610	2.205	0.610	1.500	Quote
FS1704X16X16	1.500	1-7/16-12	2.756	0.807	2.402	0.807	1.750	Quote
FS1704X20X20	1.750	1-11/16-12	3.540	1.024	2.677	1.260	2.000	Quote
FS1704X24X24	2.125	2-12	4.134	1.260	3.189	1.260	2.376	Quote
