Home>Products>Steel 37 Flare (JIC) Fittings>Female JIC, Female JIC, Female JIC Tee

Female JIC, Female JIC, Female JIC Tee

Share Print Page

You have not viewed any products recently.

6606

Enlarge

6606

There are no alternate images available for this product.

Attributes	Values
Product #	6606
AirWay	6606

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

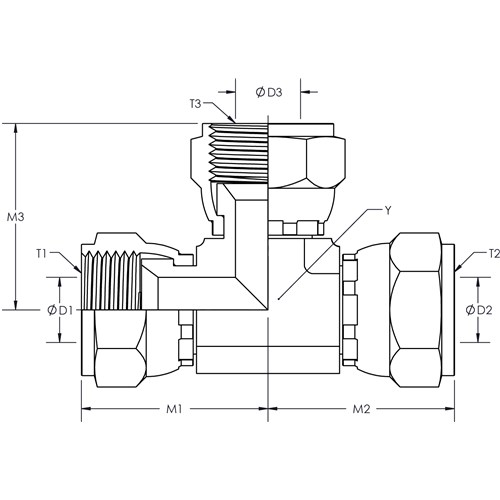

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
6606X04X04X04	0.438	7/16-20	1.000	0.172	7/16-20	1.000	0.172	7/16-20	1.000	0.172	Quote
6606X06X06X06	0.563	9/16-18	1.250	0.297	9/16-18	1.250	0.297	9/16-18	1.250	0.297	Quote
6606X08X08X08	0.750	3/4-16	1.380	0.391	3/4-16	1.380	0.391	3/4-16	1.380	0.391	Quote
6606X10X10X10	0.875	7/8-14	1.620	0.484	7/8-14	1.620	0.484	7/8-14	1.620	0.484	Quote
6606X12X12X12	1.063	1-1/16-12	1.750	0.609	1-1/16-12	1.750	0.609	1-1/16-12	1.750	0.609	Quote
6606X16X16X16	1.313	1-5/16-12	2.000	0.844	1-5/16-12	2.000	0.844	1-5/16-12	2.000	0.844	Quote
